Adapter 380/35 mm
SUPPORT METAL 35/380
Other colors available on request
The adapter Eurovent® SUPPORT METAL 35/380 is a mounting element of a platform grip as well as of a chimney step. It enables their installation with 35/380, (modules) profiled metal roofing. Made of galvanized steel sheet. Offered in a set with mounting screws, in powder-coated version.
Advantages:
- Conforms to EN 516
- Double protection against corrosion
- Fast and easy installation
- For profiled metal roof coverings – metal roof tiles with a 35/380 mm module.
Application and Technical Data

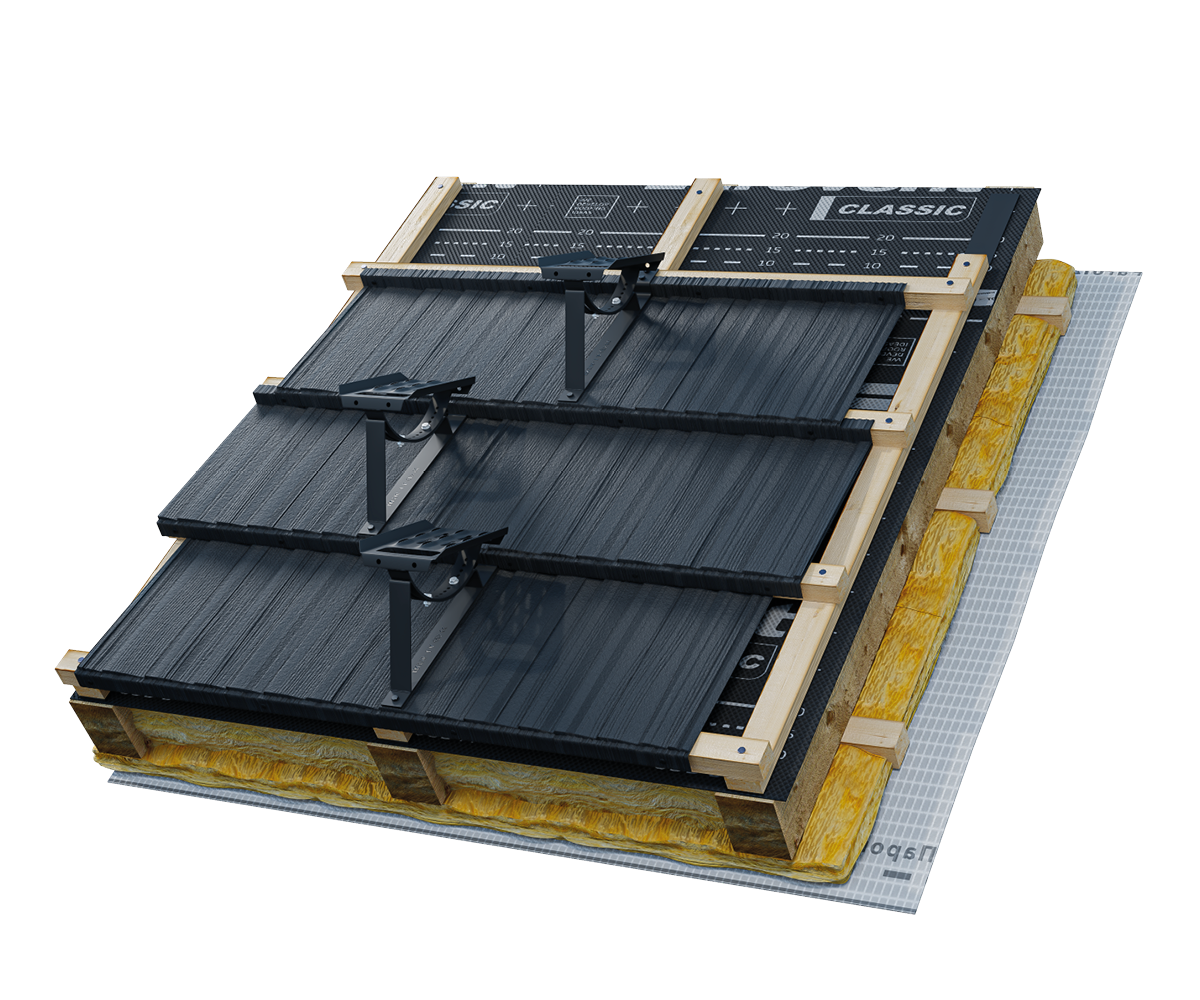

The Eurovent® SUPPORT METAL 35/380 bracket is used as a roof access component enabling efficient installation of the Eurovent® PLATFORM chimney platform or the Eurovent® STEP chimney step on metal roof tiles with a 35 mm profile height. When installing the chimney platform, the universal Eurovent® GRIP fixing element must also be used.
Fotos
System products
To ensure maximum effectiveness of snow protection, SUPPORT METAL 35/380 should be used in combination with:
- Eurovent® snow guard tubes, which create a complete system of barriers preventing sliding snow from the roof slope,
- Eurovent® tube connectors, such as CLIP TUBE and END TUBE, which ensure durable and tight connections of tube sections,
- Eurovent® sealing and adhesive tapes, increasing the durability of installation joints and protecting critical roof areas,
- Eurovent® highly vapour-permeable roof membranes, protecting the roof structure against moisture and supporting the proper functioning of the snow protection system.
The use of complete system solutions Eurovent® guarantees fixing stability, safety of use and reliable performance of snow protection for many years.
GOOD TO KNOW
What does SUPPORT do?
It transfers the fixing of the walkway or step to the roof structure.
Why are there many versions?
Different roofing profiles require different bracket geometry.
Is the bracket dimension enough for selection?
No, the exact roofing model must also be checked.
Can it simply be fixed to the roof covering?
Installation must follow the specified structural fixing detail.
Is SUPPORT alone enough for PLATFORM?
No, PLATFORM also uses the GRIP fixing cradle.
