Snow guard fence bracket
FIX METAL 330/30
The Eurovent® FIX METAL 330/30 snow guard fence bracket is made of galvanised steel. It enables the installation of a snow guard fence on metal roof tiles with a 330/30 mm module. Available in several RAL colours with a powder-coated finish. Suitable for roof slopes with a pitch of 15° to 60°.
The Eurovent® FIX METAL 330/30 bracket is designed for Eurovent® SNOWSTOPPER snow guard fences with a height of 20 cm.
Advantages:
- Double protection against corrosion
- Quick and easy installation
- For metal roof tiles with a 330/30 mm module
- For snow guard fences with a height of 20 cm
Application and Technical Data

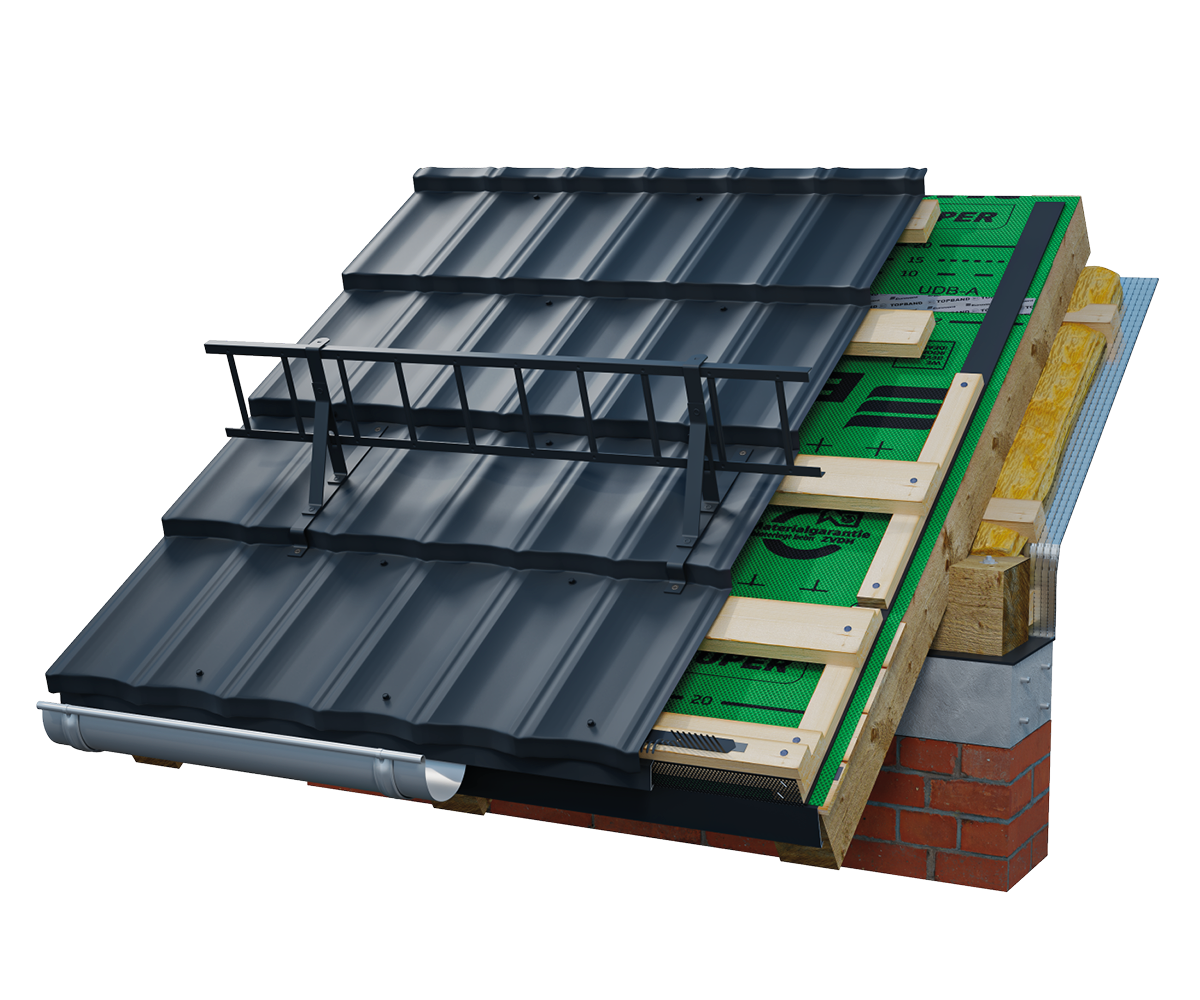

The Eurovent® FIX METAL 330/30 snow guard fence bracket is part of a snow protection system and enables efficient fixing of snow guard fences on pitched roofs with a pitch of 15° to 60°, covered with metal roof tiles with a profile height of 30 mm and a module length of 330 mm. Installation is quick and easy – the bracket is fixed through the roof covering to the roof batten.
Fotos
Documents
System products
To ensure maximum effectiveness of snow protection and installation durability, Eurovent® FIX METAL 330/30 should be used in combination with:
- Eurovent® highly vapour-permeable roof membranes, protecting the roof structure against moisture and water vapour condensation,
- Eurovent® sealing and adhesive tapes, increasing the tightness of joints in critical areas of the roof slope,
- Eurovent® eaves system elements, ensuring proper ventilation and water drainage from the roof,
- Eurovent® roof clips, which stabilise the roofing in the snow-loaded zone,
The use of complete system solutions Eurovent® guarantees safety of use, structural durability and reliable performance of snow protection for many years.
GOOD TO KNOW
What do FIX brackets do?
They connect SNOWSTOPPER to the roof structure and transfer snow loads.
Why are different versions required?
Roof tiles, metal tiles, standing seam and slate have different geometry and fixing details.
Is a size such as 350/20 sufficient for selection?
No, the exact roof-covering model must also be checked.
Can the bracket simply be fixed to the roof covering?
Installation must follow the structural fixing detail specified for the particular version.
How is the number of brackets determined?
According to roof geometry, snow load and current installation recommendations.
