Roof membrane
SUPER
The Eurovent® SUPER roof membrane, three-layer, highly vapour-permeable. It is used for insulated and ventilated sloping roofs, also with full sarking. It has the highest tear resistance in its class, therefore it is chosen by the most demanding roofers. It is suitable for concrete, ceramic, metal tiles, aluminium sheets, slate and in frame construction. Available as an option with 2 self-adhesive tapes - SYSTEM SK2.
Advantages:
- Tear resistance
- Watertightness > 3000mm H2O
- High vapour-permeability
- Suitable for full sarking
Application and Technical Data

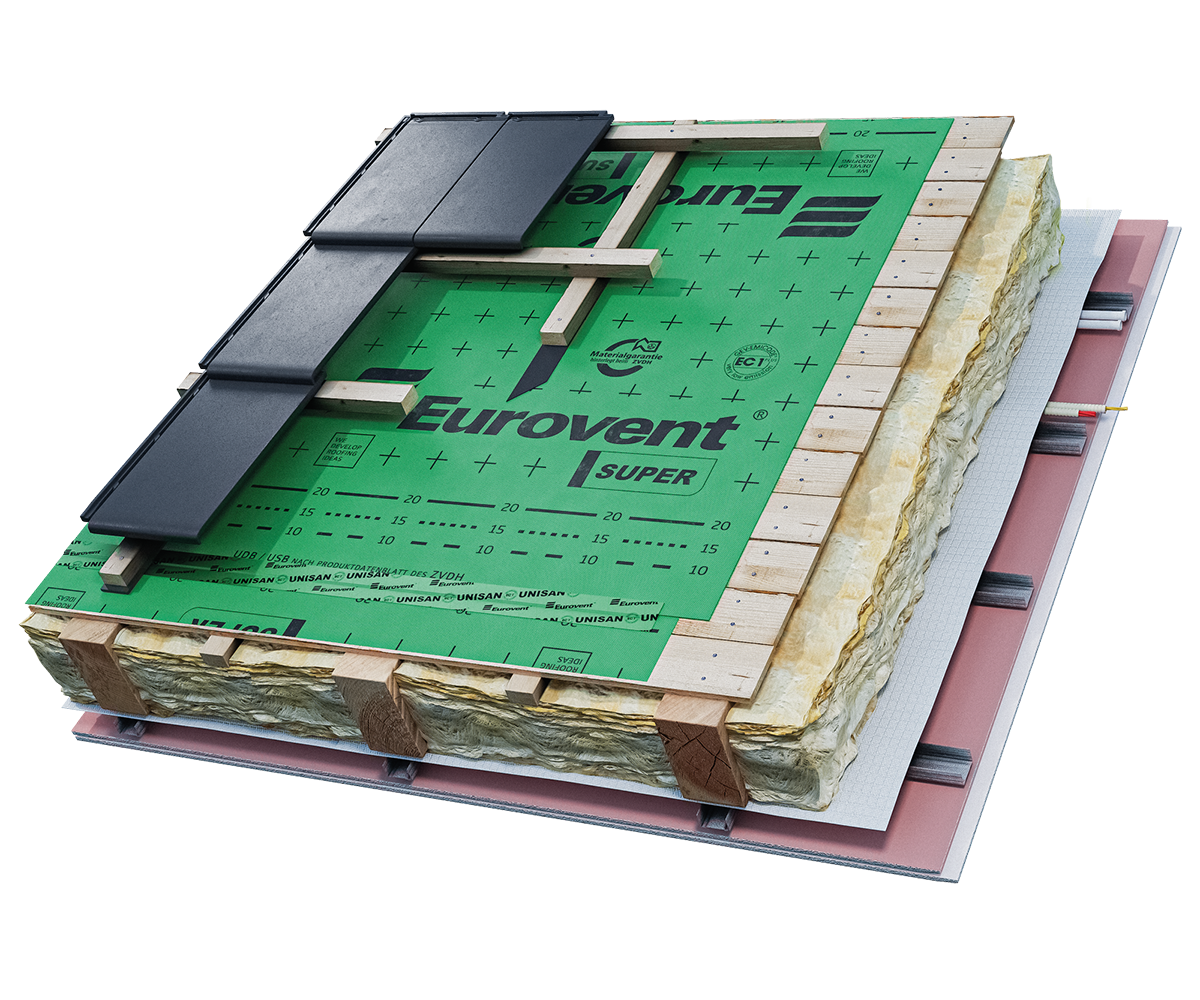

The Eurovent® SUPER roof membrane is used as an underlay for pitched, insulated and ventilated roofs, including roofs with full boarding. The product does not require a ventilation gap between the membrane and the thermal insulation (mineral wool, glass wool, etc.), which means the membrane may be in direct contact with the insulation. Installation of the final roof covering on the membrane must always be carried out using battens and counter-battens. It is suitable for use under almost all types of roof coverings, in particular ceramic tiles, concrete tiles, metal roofing tiles and aluminium sheets.
Concrete roof tile
Metal roof tile
Standing seam metal roofing
Trapezoidal metal sheet
Roofing slate
Fotos
System products
To achieve maximum durability and full functionality, the Eurovent® SUPER membrane should be used in combination with:
- Eurovent® sealing and adhesive tapes
- Compatible ventilation accessories (ridge tapes, ventilation chimneys)
- Eurovent® system vapour control membranes and wind barrier membranes
The use of complete system solutions Eurovent® increases the durability and energy efficiency of the entire roof.
GOOD TO KNOW
What roofs is Eurovent® SUPER designed for?
It is a highly vapour-permeable membrane for pitched, insulated and ventilated roofs. It can also be installed on full sarking.
Why is SUPER suitable for demanding applications?
It offers very high tear resistance and watertightness. This gives the membrane greater tolerance to mechanical loads and accidental damage during roofing work.
Can it be laid directly on thermal insulation?
Yes. The membrane may be in direct contact with insulation without an additional ventilation gap beneath it.
What coverings can it be used under?
It is suitable beneath clay and concrete tiles, metal roof tiles, other metal roofing systems and natural slate.
What types of construction is it suitable for?
It can be used in conventional, timber-frame, modular and passive-building construction.
