Adapter 290/30 mm
SUPPORT METAL 290/30
Other colors available on request
The adapter Eurovent® SUPPORT METAL 290/30 is a mounting element of a platform grip as well as of a chimney step. It enables their installation with 290/30, (modules) profiled metal roofing. Made of galvanized steel sheet. Offered in a set with mounting screws, in powder-coated version.
Advantages:
- Conforms to EN 516
- Double protection against corrosion
- Fast and easy installation
- For profiled metal roof coverings – metal roof tiles with a 290/30 mm module.
Application and Technical Data

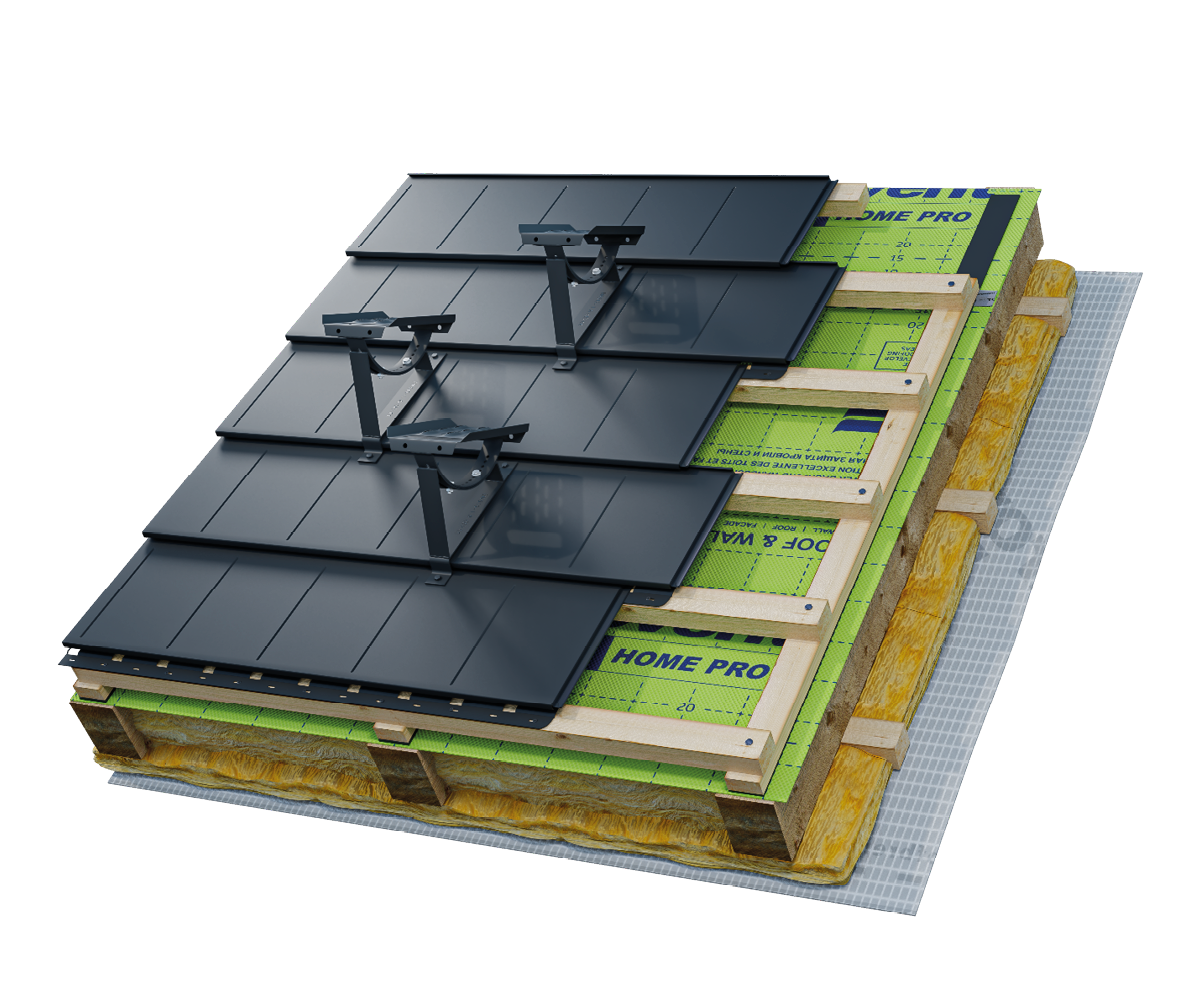

The Eurovent® SUPPORT METAL 290/30 mm bracket is used as a roof access component enabling efficient installation of the Eurovent® PLATFORM chimney platform or the Eurovent® STEP chimney step on metal roof tiles with a 26 mm profile height. When installing the chimney platform, the universal Eurovent® GRIP fixing element must also be used.
Fotos
System products
To ensure maximum safety and durability of the roof access system, Eurovent® SUPPORT METAL 290/30 should be used in combination with:
- the Eurovent® VISTA DUO roof hatch, enabling convenient and safe access to the roof slope,
- Eurovent® roof clips, which stabilise and secure the roofing in the area of installation of benches and steps,
- Eurovent® highly vapour-permeable roof membranes, protecting the roof structure against moisture,
- Eurovent® sealing and adhesive tapes, increasing the tightness and durability of installation joints.
The use of complete system solutions Eurovent® guarantees safety of use, fixing durability and full integration of roof access elements with the roof structure.
GOOD TO KNOW
What does SUPPORT do?
It transfers the fixing of the walkway or step to the roof structure.
Why are there many versions?
Different roofing profiles require different bracket geometry.
Is the bracket dimension enough for selection?
No, the exact roofing model must also be checked.
Can it simply be fixed to the roof covering?
Installation must follow the specified structural fixing detail.
Is SUPPORT alone enough for PLATFORM?
No, PLATFORM also uses the GRIP fixing cradle.
