Antenna adapter
SATTOS X BITU UNI ALU
*Available upon request.
Eurovent® SATTOS X BITU UNI ALU antenna pass-through made of high-quality plastic, rubber cap, and a flexible insulation collar FLEX 3D with aluminum and a thick butyl layer of 450 mm x 550 mm. Used for mounting antennas with mast diameters from 15 to 90 mm on pitched roofs with a slope angle of 5° to 45°. Features a universal base for installation on trapezoidal sheet metal roofs. Available in several popular RAL color options.
Advantages:
- Universal FLEX 3D collar - for installation on trapezoidal sheet metal roofs
- UV-resistant
- Quick and easy installation
- Large pipe diameter
- Complete set ready for installation
Application and Technical Data

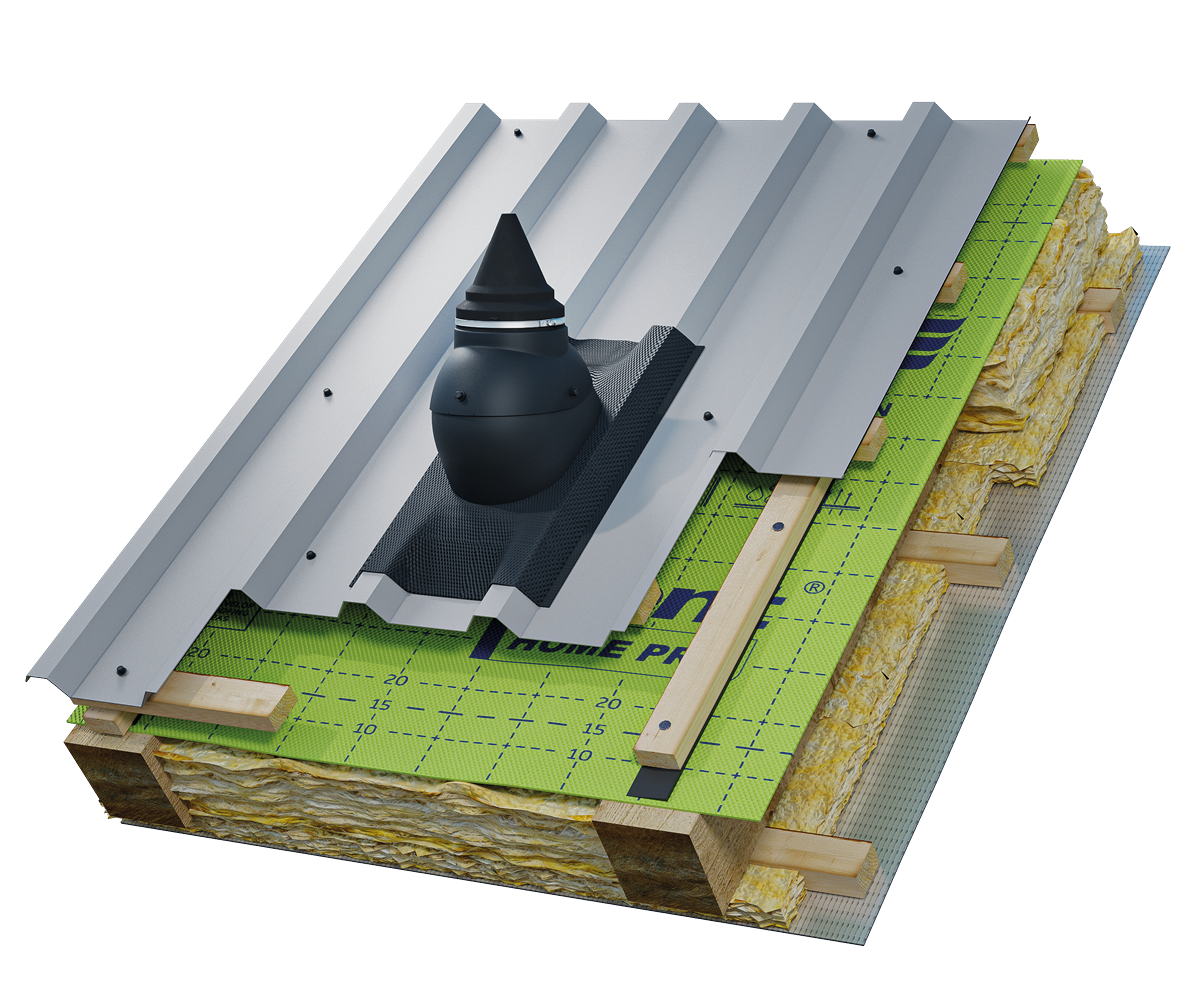

Eurovent® SATTOS X BITU UNI ALU is used as a component enabling a watertight penetration of an antenna mast through the roof slope. It allows installation of an antenna mast with a diameter from 15 to 90 mm. It features a universal base for installation of the vent on pitched roofs covered, among others, with trapezoidal metal sheets with high and low profiles. Adjustable roof pitch range from 5° to 45°.
Fotos
System products
To ensure maximum tightness and durability of the antenna passage, Eurovent® SATTOS X BITU UNI ALU should be used in combination with:
- Eurovent® system sealing accessories, which enable durable and tight installation of the antenna mast in the roof slope area;
- Eurovent® highly vapour-permeable roof membranes, which support protection of the roof slope structure against moisture and condensation;
- Eurovent® sealing and adhesive tapes, which protect the installation area against weather conditions;
- Eurovent® roof access elements, which facilitate safe service access in the antenna mast installation area.
The use of complete system solutions by Eurovent® guarantees durable tightness, aesthetic finishing and safety of the roof structure around the antenna installation point.
Documents
GOOD TO KNOW
What is SATTOS X used for?
SATTOS X is an element that provides a sealed passage for an aerial mast through the roof slope.
How is SATTOS X selected for the mast diameter?
The current product documentation specifies a range of mast diameters. Before cutting the opening and installing the product, check that the actual mast diameter falls within that range.
Does one SATTOS X base fit every roof?
No. As with the VENTOS X series, there are base versions matched to different coverings and solutions with a wider range of applications.
Can the rubber cap be cut freely?
It must be cut according to the instructions so that, once fitted, it seals tightly around the mast. An oversized opening may reduce tightness.
Does SATTOS X carry the aerial loads?
The roof penetration should not be treated as a structural mast support. The aerial and mast must have suitable fixings specified for the installation.
