Antenna adapter
SATTOS X R28

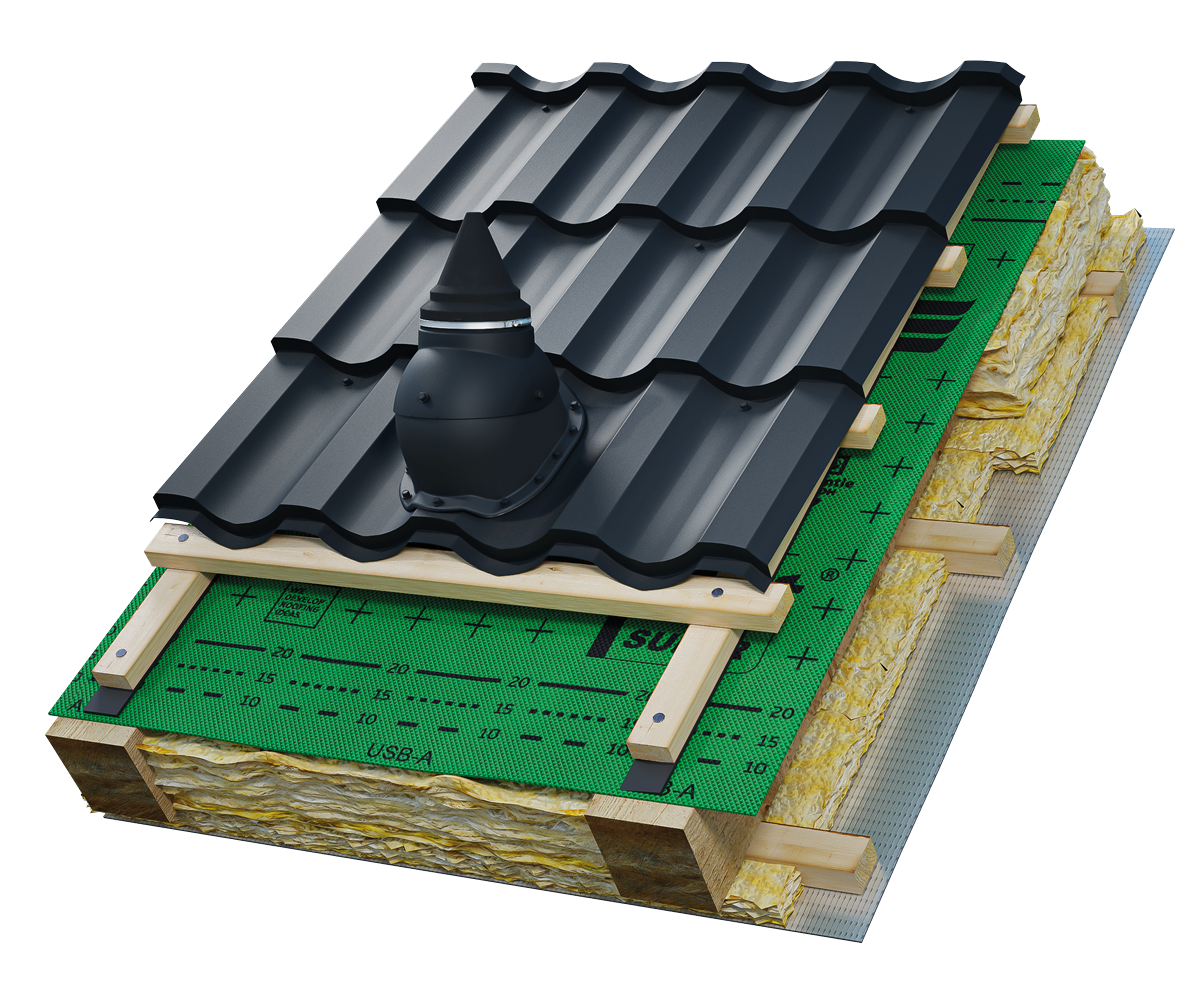

The Eurovent® SATTOS X R28 antenna adapter manufactured from plastic and tipped with a rubber cap. They are used for mounting antennas with mast diameter from 15 to 90 mm on sloping roofs with an angle from 5° to 45°. It has a base for mounting a fireplace on sheets with R28 stamping. Available in several of the most popular color versions according to RAL colors.
Advantages:
- To be used on steel tiles with R28 embossing
- UV resistance
- Fast and easy installation
- Large diameter
- Complete set ready to install
Application and Technical Data
Eurovent® SATTOS X R28 stosowany jako element antenowy. Umożliwia montaż anteny o średnicy masztu od 15 do 90 mm. Podstawa kominka przystosowana do montażu na dachach skośnych pokrytych blachodachówką o przetłoczeniu R28. Regulacja kąta nachylenia od 5° do 45°.
Documents
Fotos
System products
To ensure maximum tightness and durability of the antenna passage, Eurovent® SATTOS X R28 should be used in combination with:
- Eurovent® system sealing accessories, such as sealing and adhesive tapes — which enable durable and tight fixing of the antenna mast in the roof slope area;
- Eurovent® highly vapour-permeable roof membranes, which support protection of the roof slope structure against moisture and condensation;
- Eurovent® sealing and adhesive tapes, protecting the installation area against weather conditions;
- Eurovent® roof access elements, which facilitate safe service and installation access in the mast installation area.
The use of complete system solutions by Eurovent® guarantees durable tightness, aesthetic finishing and safety of the roof structure around the antenna installation point.
GOOD TO KNOW
What is SATTOS X used for?
SATTOS X is an element that provides a sealed passage for an aerial mast through the roof slope.
How is SATTOS X selected for the mast diameter?
The current product documentation specifies a range of mast diameters. Before cutting the opening and installing the product, check that the actual mast diameter falls within that range.
Does one SATTOS X base fit every roof?
No. As with the VENTOS X series, there are base versions matched to different coverings and solutions with a wider range of applications.
Can the rubber cap be cut freely?
It must be cut according to the instructions so that, once fitted, it seals tightly around the mast. An oversized opening may reduce tightness.
Does SATTOS X carry the aerial loads?
The roof penetration should not be treated as a structural mast support. The aerial and mast must have suitable fixings specified for the installation.
