Antenna adapter
SATTOS X F22
The Eurovent® SATTOS X F22 antenna adapter manufactured from plastic and tipped with a rubber cap. They are used for mounting antennas with mast diameter from 15 to 90 mm on sloping roofs with an angle from 5° to 45°. It has a base for mounting a fireplace on sheets with F22 stamping. Available in several of the most popular color versions according to RAL colors.
Advantages:
- To be used on steel tiles with F22 embossing
- UV resistance
- Fast and easy installation
- Large diameter
- Complete set ready to install
Application and Technical Data

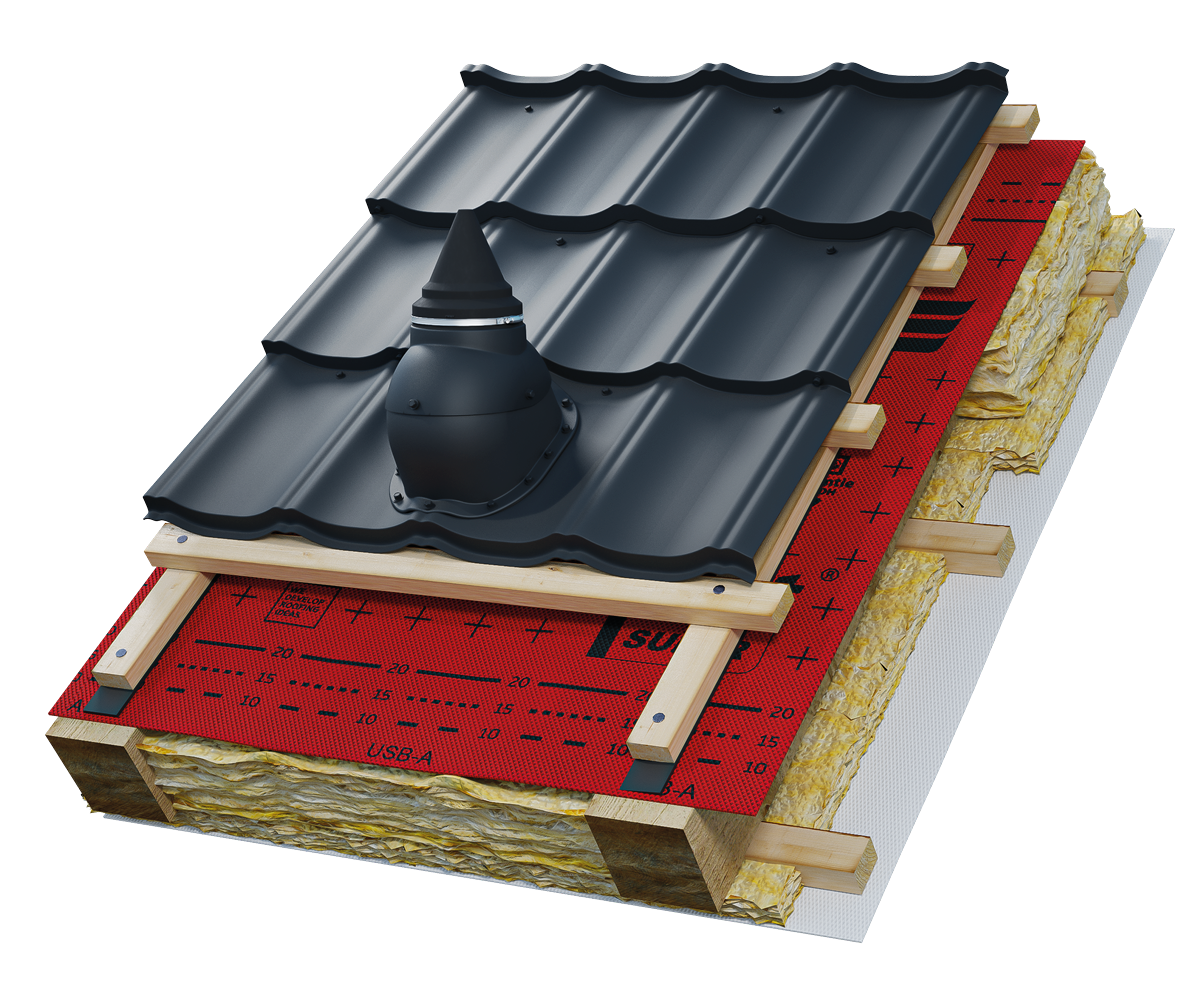

Eurovent® SATTOS X F22 is used as an antenna component. It enables installation of an antenna mast with a diameter from 15 to 90 mm. The vent base is adapted for installation on pitched roofs covered with F22 profile metal roof tiles. Adjustable roof pitch range from 5° to 45°.
Documents
Fotos
System products
To ensure maximum tightness and durability of the antenna passage, Eurovent® SATTOS X F22 should be used in combination with:
- Eurovent® system sealing and adhesive accessories, which enable tight installation of the antenna mast in the roof slope area,
- Eurovent® highly vapour-permeable roof membranes, which support protection of the roof structure against moisture and condensation,
- Eurovent® sealing and adhesive tapes, protecting the installation area against weather conditions,
- Eurovent® roof access elements, which facilitate safe service access in the area of the installed mast.
The use of complete system solutions by Eurovent® guarantees durable tightness, aesthetic finishing and safety of the roof structure around the antenna installation point.
GOOD TO KNOW
What is SATTOS X used for?
SATTOS X is an element that provides a sealed passage for an aerial mast through the roof slope.
How is SATTOS X selected for the mast diameter?
The current product documentation specifies a range of mast diameters. Before cutting the opening and installing the product, check that the actual mast diameter falls within that range.
Does one SATTOS X base fit every roof?
No. As with the VENTOS X series, there are base versions matched to different coverings and solutions with a wider range of applications.
Can the rubber cap be cut freely?
It must be cut according to the instructions so that, once fitted, it seals tightly around the mast. An oversized opening may reduce tightness.
Does SATTOS X carry the aerial loads?
The roof penetration should not be treated as a structural mast support. The aerial and mast must have suitable fixings specified for the installation.
