Antenna adapter
SATTOS X PLUS C
The Eurovent® SATTOS X PLUS C antenna adapter manufactured from plastic and tipped with a rubber cap. They are used for mounting antennas with mast diameter from 15 to 90 mm on sloping roofs with an angle from 5° to 45°. It has a base for mounting a fireplace on sheets with BRAAS CELTYCKA; BENDERS PALEMA; NELSKAMP SIGMA stamping. Available in several of the most popular color versions according to RAL colors.
Advantages:
- To be used on steel tiles with CELTYCKA embossing
- UV resistance
- Fast and easy installation
- Large diameter
- Complete set ready to install
Application and Technical Data

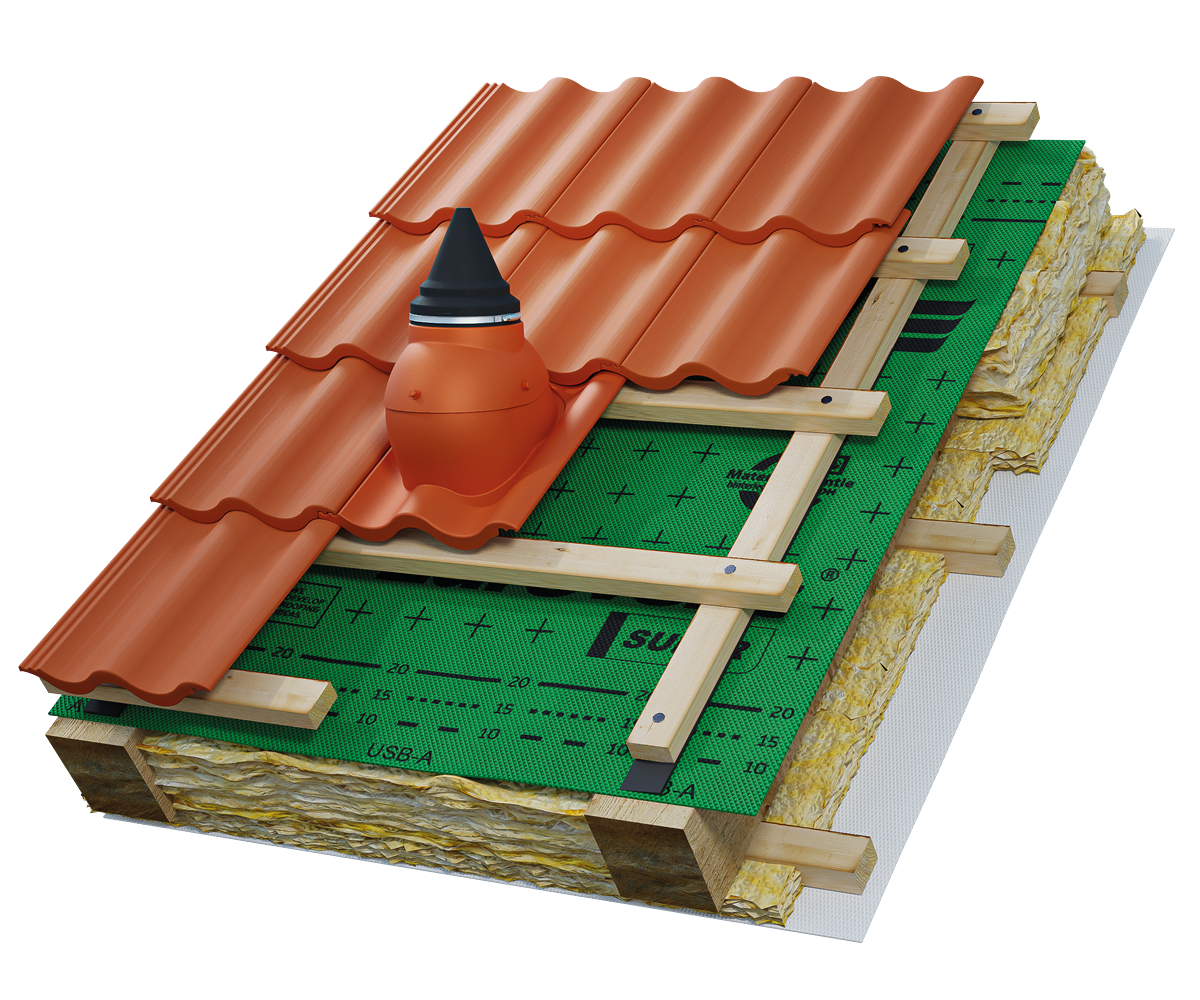

The Eurovent® SATTOS X PLUS C is used as an antenna mounting element. It allows installation of an antenna with a mast diameter from 15 to 90 mm. The base of the unit is designed for installation on roofs covered with concrete roof tiles: BRAAS CELTYCKA, BENDERS PALEMA, and NELSKAMP SIGMA. Adjustable inclination from 5° to 45°.
Documents
Fotos
System products
To ensure maximum tightness and durability of the antenna mast passage, Eurovent® SATTOS X PLUS C should be used in combination with:
- Eurovent® system sealing accessories, such as sealing and adhesive tapes, which ensure tight fitting in the mast installation area;
- Eurovent® highly vapour-permeable roof membranes, which support protection of the roof slope structure against moisture;
- Eurovent® roof access elements and roof accessories, facilitating service access and safe installation of antenna devices;
- other compatible Eurovent® system components, ensuring full integration and consistency of all roof connections.
The use of complete system solutions by Eurovent® guarantees durable tightness, aesthetic finishing and safety of the roof structure in the mast installation area.
GOOD TO KNOW
What is SATTOS X used for?
SATTOS X is an element that provides a sealed passage for an aerial mast through the roof slope.
How is SATTOS X selected for the mast diameter?
The current product documentation specifies a range of mast diameters. Before cutting the opening and installing the product, check that the actual mast diameter falls within that range.
Does one SATTOS X base fit every roof?
No. As with the VENTOS X series, there are base versions matched to different coverings and solutions with a wider range of applications.
Can the rubber cap be cut freely?
It must be cut according to the instructions so that, once fitted, it seals tightly around the mast. An oversized opening may reduce tightness.
Does SATTOS X carry the aerial loads?
The roof penetration should not be treated as a structural mast support. The aerial and mast must have suitable fixings specified for the installation.
