Ventilation chimney
VENTOS X PLUS C
Eurovent® VENTOS X PLUS C s an advanced roofing vent with the venting diameter of 170 mm and the venting entry of 150 mm, made of high-quality plastic. The construction of the roofing vent supports ventilation by using wind energy and ensures correct chimney draft. It has an anti-condensation system that removes condensation outside the roof. The profiled base prevents rainwater from flowing in. Tilt angle adjustment from 5 ° to 45 °. It has a base for mounting a fireplace on sheets with BRAAS CELTYCKA; BENDERS PALEMA; NELSKAMP SIGMA stamping. Available in several of the most popular color versions according to RAL colors.
Advantages:
- UV resistant
- Compliant with the PN-83 / B-03430 standard
- To be used on steel tiles with CELTYCKA embossing
- Large ventilation surface
- Anticondensation system
- Complete set ready to install
Application and Technical Data

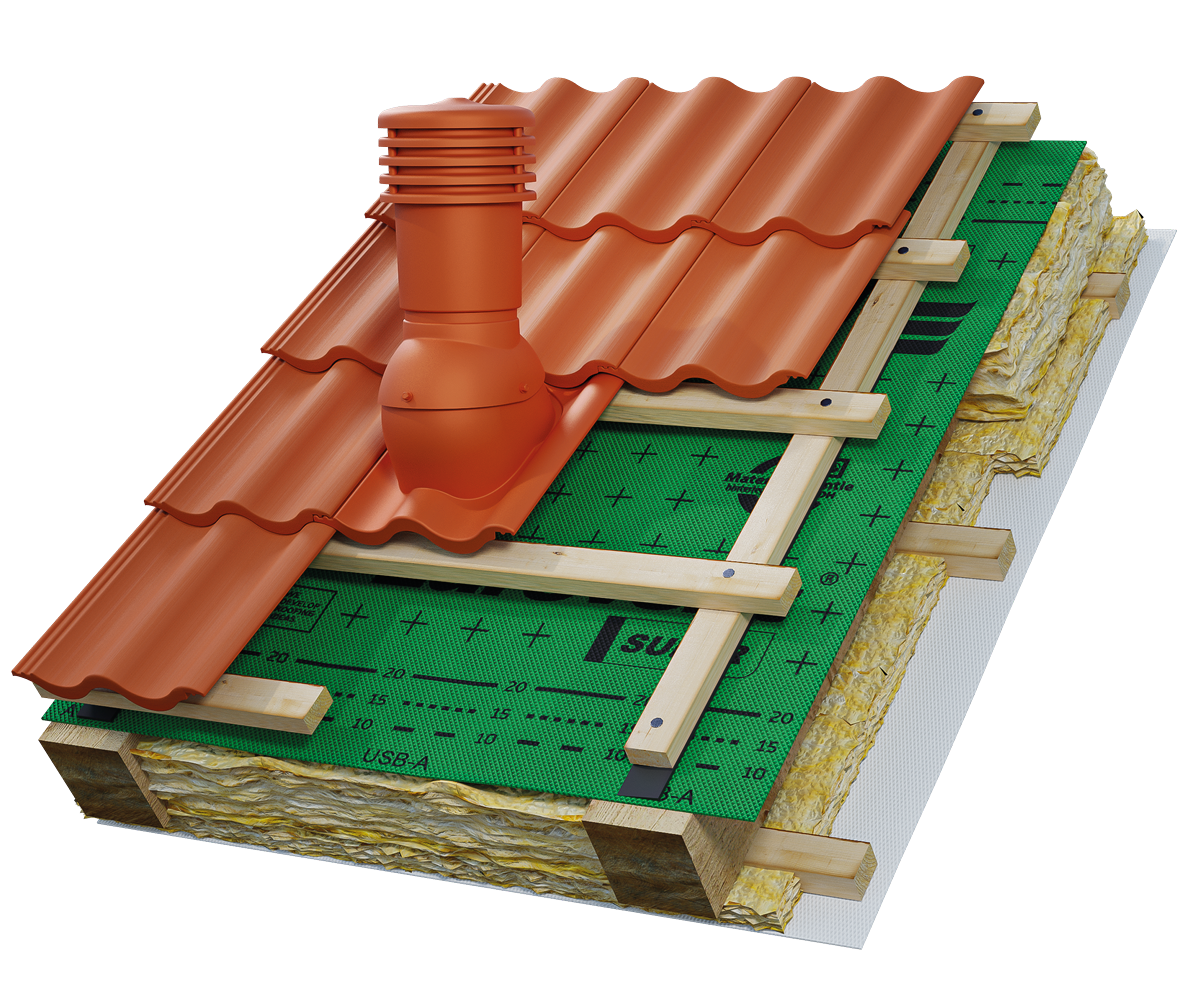

The Eurovent® VENTOS X C roof vent is used as a roof outlet for mechanical and natural ventilation ducts in residential and public utility buildings. The Eurovent® VENTOS X CELTYCKA ventilation vent complies with PN-83/B-03430 together with amendment /Az3. The base of the vent is designed for installation on roofs covered with concrete roof tiles: BRAAS CELTYCKA, BENDERS PALEMA, and NELSKAMP SIGMA. Adjustable inclination from 5° to 45°.
Fotos
System products
To ensure maximum ventilation performance and tightness of roof connections, Eurovent® VENTOS X PLUS C should be used in combination with:
- Eurovent® system installation accessories, such as FLEX X, FLEXOS X and SEAL EPDM, which guarantee a durable and tight connection of the ventilation chimney with the roof covering;
- Eurovent® highly vapour-permeable roof membranes, which support proper roof slope ventilation and protect the structure against moisture;
- Eurovent® sealing and adhesive tapes, which protect the installation area against water penetration and the negative impact of weather conditions;
- Eurovent® roof access elements, facilitating safe service access to the ventilation chimney.
The use of complete system solutions by Eurovent® guarantees effective moisture removal, stable airflow and long-term tightness of the entire roof system.
GOOD TO KNOW
What do the PLUS T, R, C or S designations mean?
They identify a base type designed for specific groups of roof tiles. They do not imply compatibility with all tiles of a similar appearance.
How can I make sure the base fits my roof?
Check the tile manufacturer and exact model in the current Eurovent® configurator or compatibility list. This is safer than choosing by appearance alone.
Do different PLUS versions change how the roof vent works?
The vent’s basic function remains the same. The main differences concern the geometry of the roof penetration element matched to the specific covering.
Can VENTOS X PLUS be used with mechanical ventilation?
The VENTOS X series is intended to terminate mechanical and natural ventilation ducts, but the vent and diameter should be selected according to the installation design.
Can the base be modified if it does not fit perfectly?
This is not a recommended selection method. It is safer to use a version intended for the specific covering or an appropriate universal base specified by the manufacturer.
