Adapter 330/30 mm
SUPPORT METAL 330/30
Other colors available on request
The adapter Eurovent® SUPPORT METAL 330/30 is a mounting element of a platform grip as well as of a chimney step. It enables their installation with 330/30, (modules) profiled metal roofing. Made of galvanized steel sheet. Offered in a set with mounting screws, in powder-coated version.
Advantages:
- Conforms to EN 516
- Double protection against corrosion
- Fast and easy installation
- For metal roof tiles 330/30 mm
Application and Technical Data

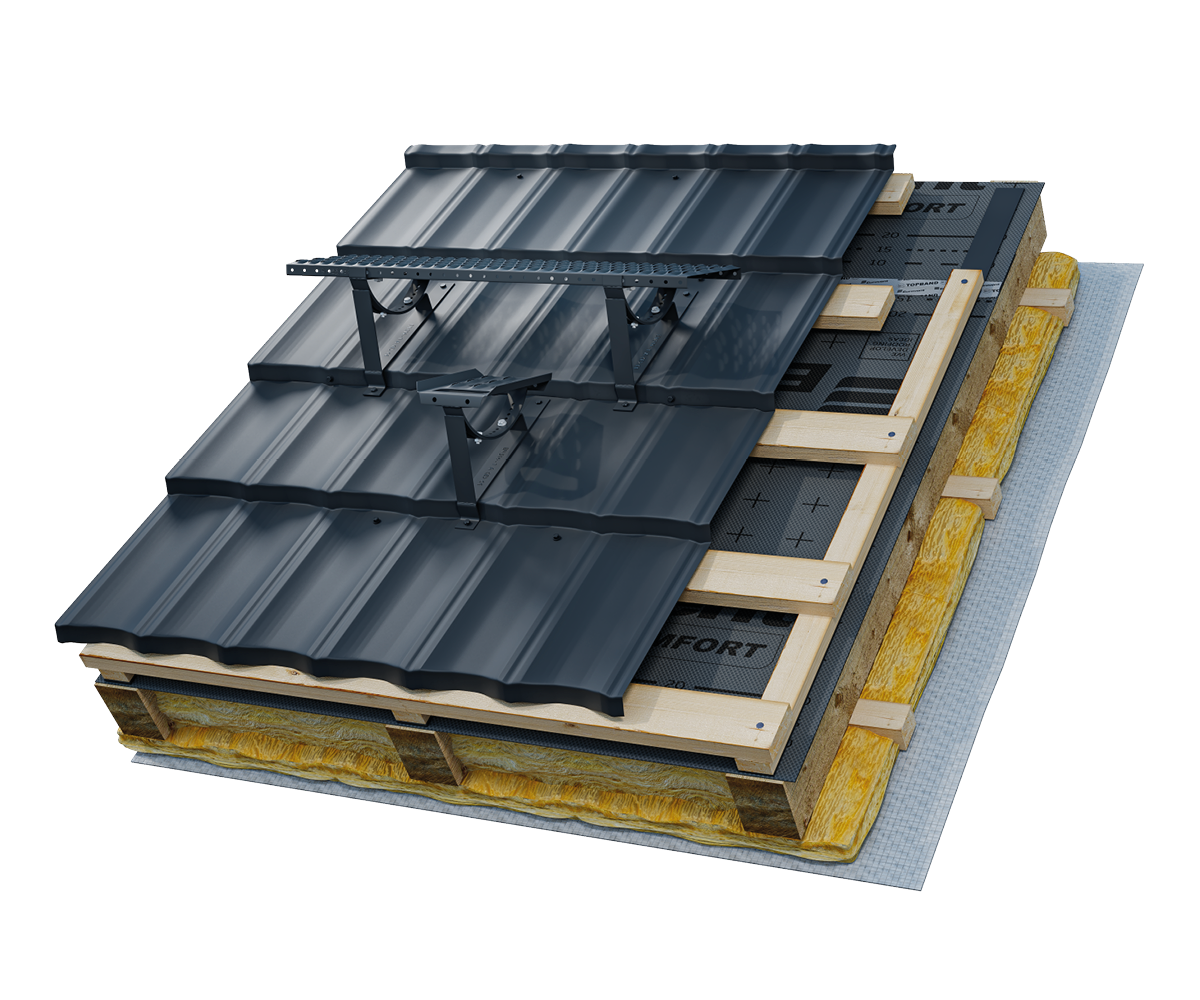

The Eurovent® SUPPORT METAL 330/30 bracket is used as a roof access component enabling efficient installation of the Eurovent® PLATFORM chimney platform or the Eurovent® STEP chimney step on metal roof tiles with a 35 mm profile height. When installing the chimney platform, the universal Eurovent® GRIP fixing element must also be used.
Fotos
System products
To ensure maximum effectiveness of snow protection, SUPPORT METAL 330/30 should be used in combination with:
- Eurovent® snow guard tubes, which create a complete barrier preventing uncontrolled sliding of snow from the roof slope,
- Eurovent® tube connectors, such as CLIP TUBE and END TUBE, ensuring durable, stable and easy-to-install connections,
- Eurovent® sealing and adhesive tapes, increasing the tightness and durability of critical installation joints,
- Eurovent® highly vapour-permeable roof membranes, which protect the roof structure against moisture and support the proper functioning of the entire snow protection system.
The use of complete system solutions Eurovent® guarantees fixing stability, safety of use and reliable performance of snow protection for many years.
GOOD TO KNOW
What does SUPPORT do?
It transfers the fixing of the walkway or step to the roof structure.
Why are there many versions?
Different roofing profiles require different bracket geometry.
Is the bracket dimension enough for selection?
No, the exact roofing model must also be checked.
Can it simply be fixed to the roof covering?
Installation must follow the specified structural fixing detail.
Is SUPPORT alone enough for PLATFORM?
No, PLATFORM also uses the GRIP fixing cradle.
