Antenna adapter
SATTOS X PLUS R
The Eurovent® SATTOS X PLUS R antenna pass-through is made of plastic and a rubber cap. It is used for installing antennas with a mast diameter from 15 to 90 mm on pitched roofs with a slope from 5° to 45°. It features a base designed for installation on roofs covered with concrete roof tiles: ROMAŃSKA, PODWÓJNA RZYMSKA, MECKLENBURGER, FINKENBERGER, and ALPEN DACHSTEIN. Available in several of the most popular colour versions according to the RAL colour chart.
Advantages:
- For concrete roof tiles – Romańska type
- Resistant to UV radiation
- Quick and easy installation
- Large pipe diameter
- Complete set ready for installation
Application and Technical Data

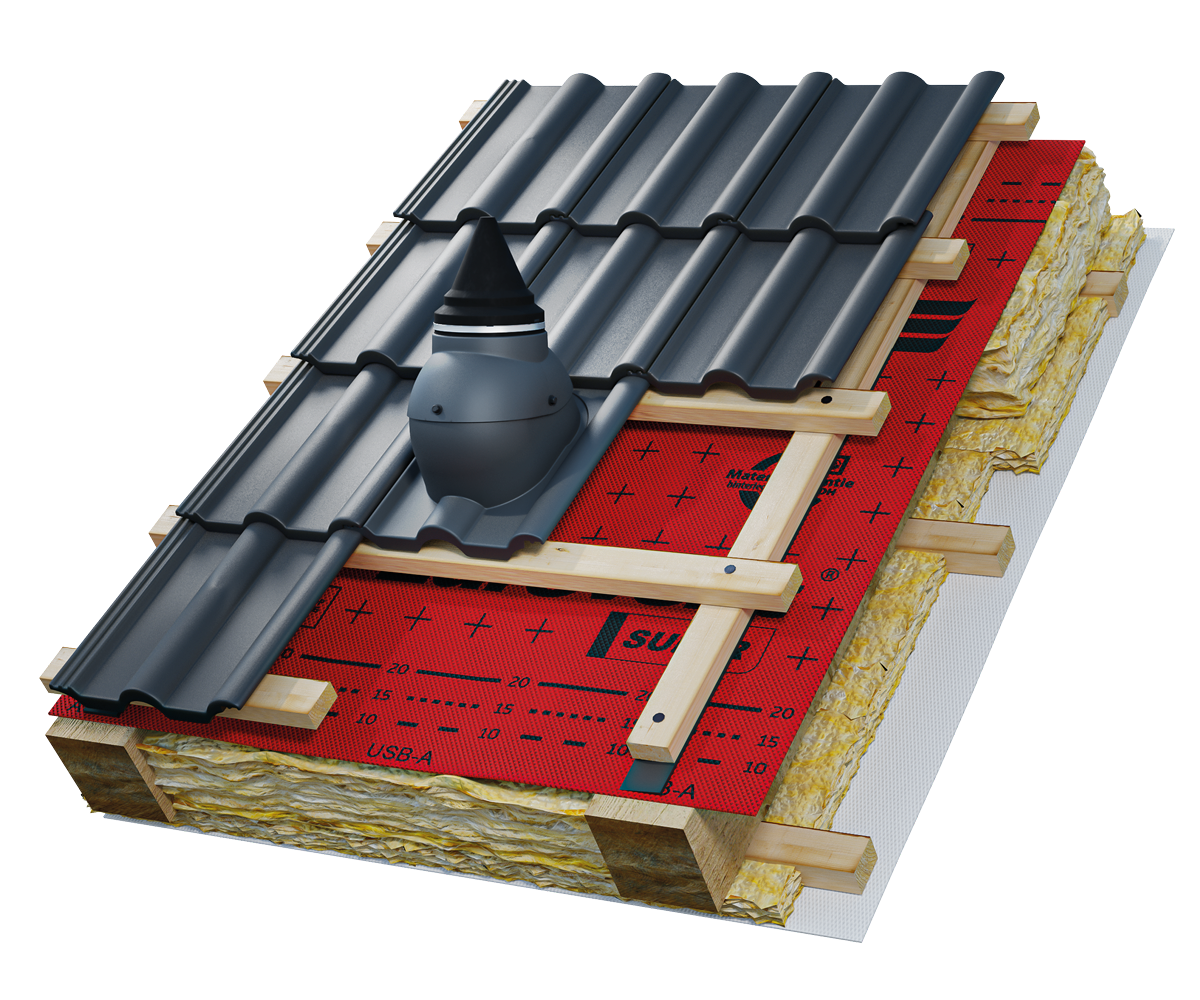

The Eurovent® SATTOS X PLUS R is used as an antenna mounting element. It allows installation of an antenna with a mast diameter from 15 to 90 mm. The base is designed for installation on roofs covered with concrete roof tiles: ROMAŃSKA, PODWÓJNA RZYMSKA, MECKLENBURGER, FINKENBERGER, and ALPEN DACHSTEIN.
Documents
Fotos
System products
To ensure maximum tightness and durability of the antenna mast passage, Eurovent® SATTOS X PLUS R should be used in combination with:
- Eurovent® system installation accessories, such as SATTOS X bases for various types of roof coverings, guaranteeing a tight connection of the mast with the roof slope;
- Eurovent® highly vapour-permeable roof membranes, which support resistance of the roof structure to moisture and proper roof slope ventilation;
- Eurovent® sealing and adhesive tapes, which protect the mast installation area against moisture penetration and weather conditions;
- Eurovent® roof access elements, enabling safe service and installation access in the mast and its base area.
The use of complete system solutions by Eurovent® guarantees durable tightness, aesthetic finishing and long-term protection of the entire roof element around the mast installation.
GOOD TO KNOW
What is SATTOS X used for?
SATTOS X is an element that provides a sealed passage for an aerial mast through the roof slope.
How is SATTOS X selected for the mast diameter?
The current product documentation specifies a range of mast diameters. Before cutting the opening and installing the product, check that the actual mast diameter falls within that range.
Does one SATTOS X base fit every roof?
No. As with the VENTOS X series, there are base versions matched to different coverings and solutions with a wider range of applications.
Can the rubber cap be cut freely?
It must be cut according to the instructions so that, once fitted, it seals tightly around the mast. An oversized opening may reduce tightness.
Does SATTOS X carry the aerial loads?
The roof penetration should not be treated as a structural mast support. The aerial and mast must have suitable fixings specified for the installation.
