Antenna adapter
SATTOS X N25
The Eurovent® SATTOS X N25 antenna adapter manufactured from plastic and tipped with a rubber cap. They are used for mounting antennas with mast diameter from 15 to 90 mm on sloping roofs with an angle from 5° to 45°. It has a base for mounting a fireplace on sheets with N25 stamping. Available in several of the most popular color versions according to RAL colors.
Advantages:
- To be used on steel tiles with N25 embossing
- UV resistance
- Fast and easy installation
- Large diameter
- Complete set ready to install
Application and Technical Data

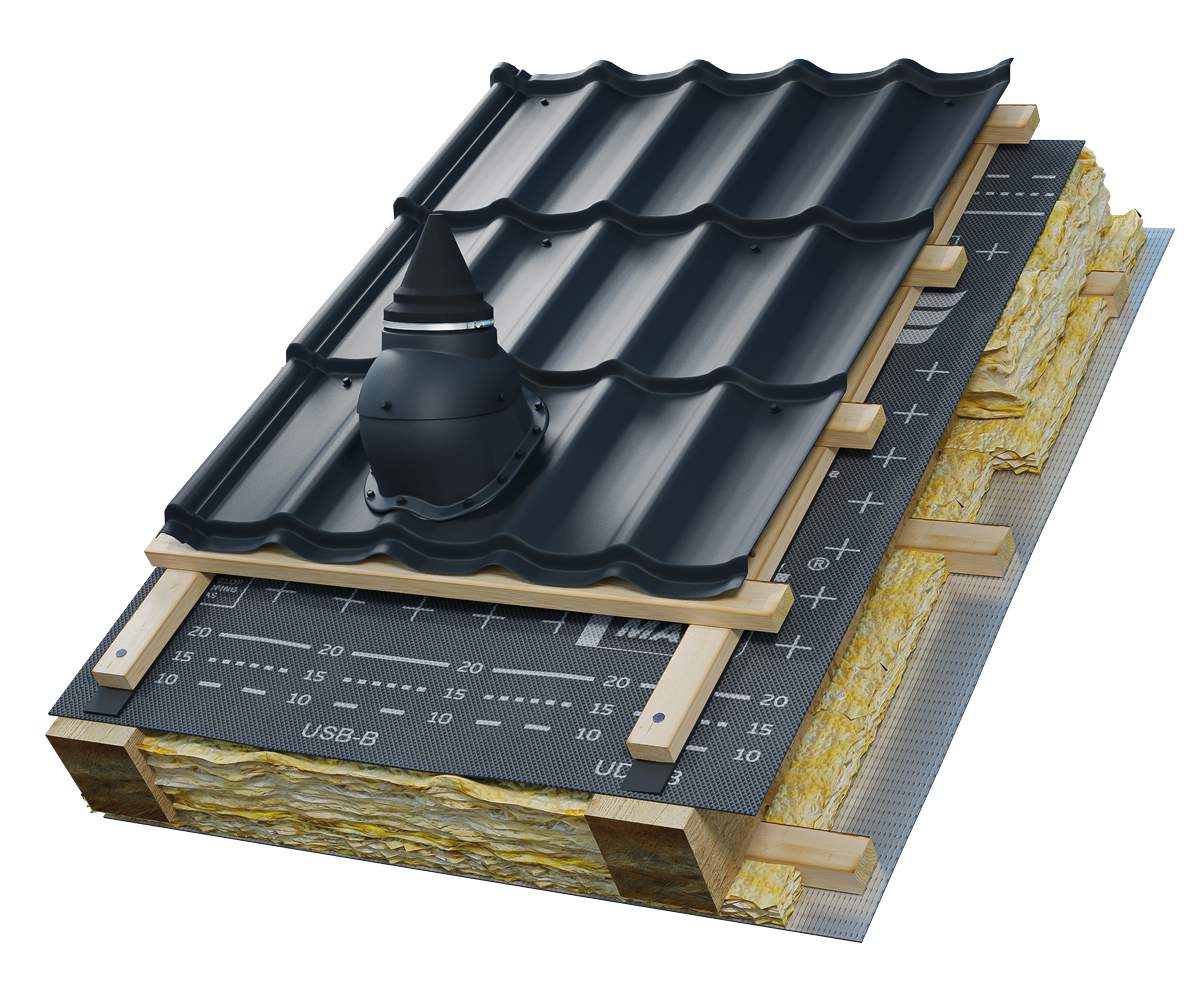

Eurovent® SATTOS X N25 is used as an antenna component. It enables installation of an antenna mast with a diameter from 15 to 90 mm. The vent base is adapted for installation on pitched roofs covered with N25 profile metal roof tiles. Adjustable roof pitch range from 5° to 45°.
Documents
Fotos
System products
To guarantee maximum tightness and durability of the antenna passage, Eurovent® SATTOS X N25 should be used in combination with:
- Eurovent® system sealing accessories, such as sealing and adhesive tapes — for durable and tight installation of the antenna mast,
- Eurovent® highly vapour-permeable roof membranes, which support protection of the roof structure against moisture,
- Eurovent® adhesive and sealing tapes, protecting the installation area against weather conditions,
- Eurovent® roof access elements, enabling easy service access in the installation area.
The use of complete system solutions by Eurovent® guarantees durable tightness, aesthetic finishing and safety of the entire roof structure in the installation area.
GOOD TO KNOW
What is SATTOS X used for?
SATTOS X is an element that provides a sealed passage for an aerial mast through the roof slope.
How is SATTOS X selected for the mast diameter?
The current product documentation specifies a range of mast diameters. Before cutting the opening and installing the product, check that the actual mast diameter falls within that range.
Does one SATTOS X base fit every roof?
No. As with the VENTOS X series, there are base versions matched to different coverings and solutions with a wider range of applications.
Can the rubber cap be cut freely?
It must be cut according to the instructions so that, once fitted, it seals tightly around the mast. An oversized opening may reduce tightness.
Does SATTOS X carry the aerial loads?
The roof penetration should not be treated as a structural mast support. The aerial and mast must have suitable fixings specified for the installation.
