Antenna adapter
SATTOS X BITU UNI EPDM
The Eurovent® SATTOS X BITU UNI EPDM antenna pass-through is made of high-quality plastic, a rubber cap, and a flexible insulating collar FLEX EPDM with a thick layer of butyl measuring 300 mm x 550 mm. It is used for installing antennas with mast diameters ranging from 15 to 90 mm on pitched roofs with an angle of inclination from 5° to 45°. It features a universal base for mounting on trapezoidal sheets. Available in several popular color variants according to the RAL color palette.
Advantages:
- Universal FLEX EPDM collar - suitable for mounting on trapezoidal sheets.
- UV resistant
- Quick and easy installation
- Large pipe diameter
- Complete set ready for installation
Application and Technical Data

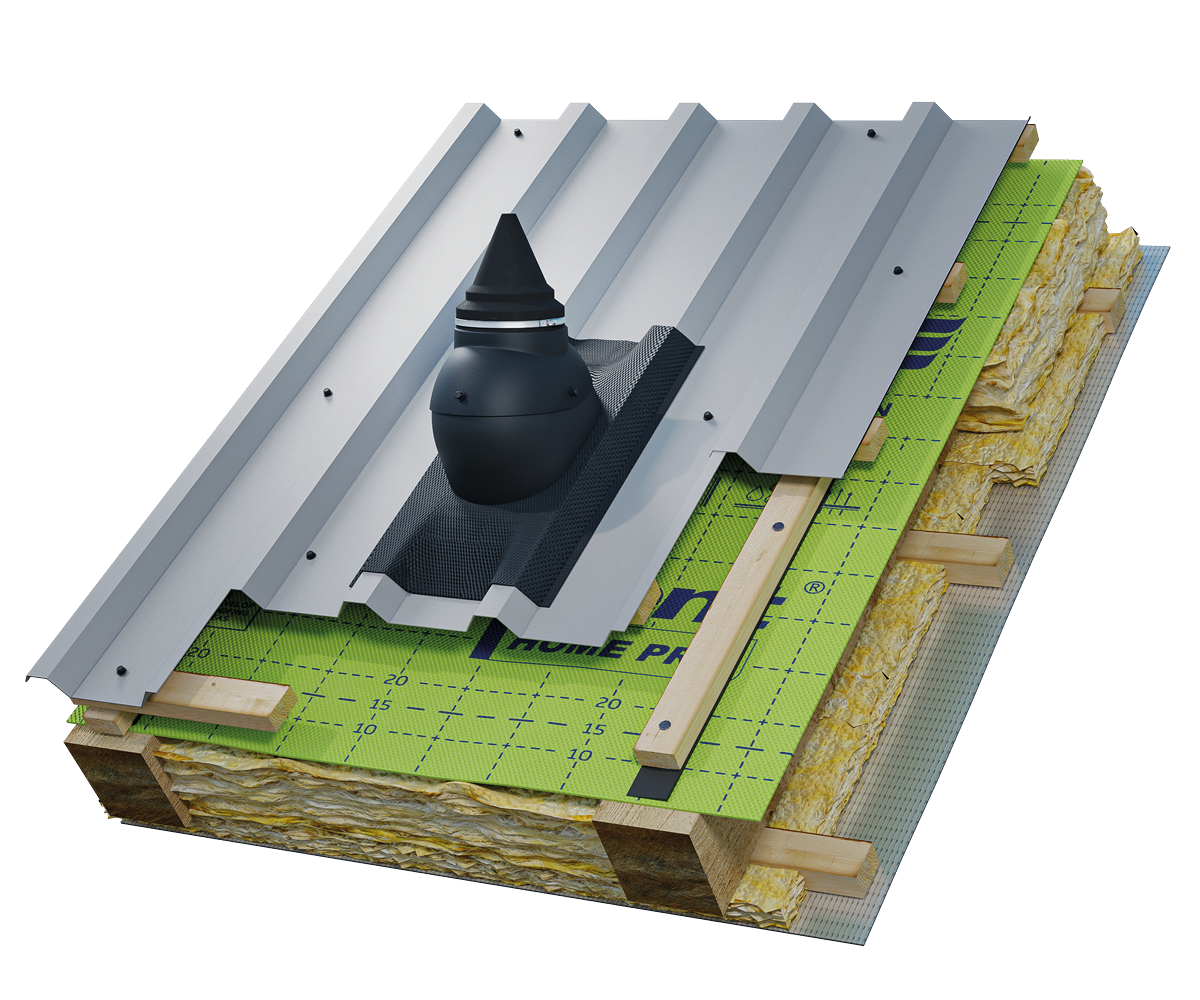

Eurovent® SATTOS X BITU UNI EPDM is used as a component enabling a watertight penetration of an antenna mast through the roof slope. It allows installation of an antenna mast with a diameter from 15 to 90 mm. It features a universal base for installation of the vent on pitched roofs covered, among others, with trapezoidal metal sheets with high and low profiles. Adjustable roof pitch range from 5° to 45°.
Fotos
System products
To ensure maximum tightness and durability of the antenna passage, Eurovent® SATTOS X BITU UNI EPDM should be used in combination with:
- Eurovent® system sealing accessories, such as sealing and adhesive tapes — which ensure a durable and tight connection of the antenna mast with the roof covering;
- Eurovent® highly vapour-permeable roof membranes, which support protection of the roof structure against moisture and condensation;
- Eurovent® sealing and adhesive tapes, which protect the installation area against weather conditions;
- Eurovent® roof access elements, which facilitate safe service access in the mast installation area.
The use of complete system solutions by Eurovent® guarantees durable tightness, aesthetic finishing and safety of the roof structure within the antenna installation point.
GOOD TO KNOW
What is SATTOS X used for?
SATTOS X is an element that provides a sealed passage for an aerial mast through the roof slope.
How is SATTOS X selected for the mast diameter?
The current product documentation specifies a range of mast diameters. Before cutting the opening and installing the product, check that the actual mast diameter falls within that range.
Does one SATTOS X base fit every roof?
No. As with the VENTOS X series, there are base versions matched to different coverings and solutions with a wider range of applications.
Can the rubber cap be cut freely?
It must be cut according to the instructions so that, once fitted, it seals tightly around the mast. An oversized opening may reduce tightness.
Does SATTOS X carry the aerial loads?
The roof penetration should not be treated as a structural mast support. The aerial and mast must have suitable fixings specified for the installation.
