Sealing collar
MINI SEAL
Eurovent® MINI SEAL self-adhesive sealing collar designed for sealing cables passing through building partitions, including walls, roof, attic and floors. Made of high quality polypropylene, glued with acrylic glue and EPDM cable passage.
Advantages
- Fast and easy installation
- Insulates against wind and steam
- Self-adhesive
Application and Technical Data

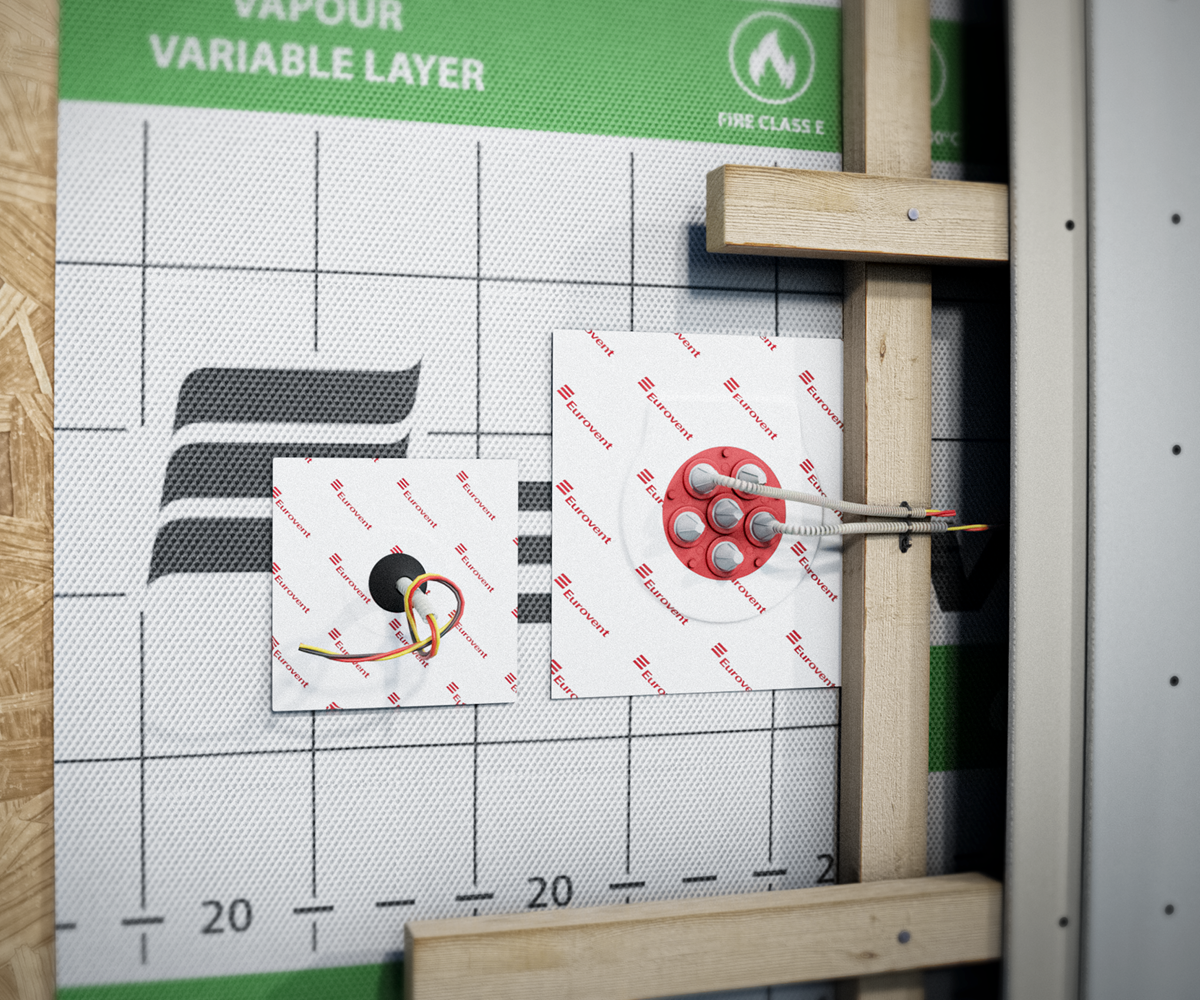

Eurovent® MINI SEAL self-adhesive sealing collar enables sealing of all kinds of small diameter cables mounted in building partitions, most often as elements of electrical and control installations. They perfectly seal places where cables pass through vapor-barrier, vapor-permeable and insulation membranes and membranes in roofs, attics, walls and floors of buildings made in all technologies and, above all, in skeletal technology and the construction of passive houses.
Other
Documents
Fotos
System products
To ensure maximum performance of MINI SEAL, it is recommended to use it as part of a complete roofing system together with:
- Eurovent® roof membranes (roof underlays / underdeck membranes), which protect the roof structure against moisture and secure sealing zones against water ingress,
- Eurovent® sealing and adhesive tapes, complementing the function of MINI SEAL in areas requiring additional reinforcement and enhanced tightness,
- Eurovent® metal flashing elements, where MINI SEAL can be applied as a flexible seal for detailing areas and junctions,
- Eurovent® installation accessories, supporting the durability and stability of the entire roofing system, particularly in critical zones.
The use of complete Eurovent® system solutions guarantees high joint tightness, long-term protection against moisture and reliable performance of the roof structure for many years.
GOOD TO KNOW
What is MINI SEAL used for?
For creating tight cable penetrations of small diameter through vapour control layers, membranes and other insulation layers.
Why is a ready-made collar better than sealing a cable with pieces of tape?
The flexible EPDM penetration fits evenly around the cable’s entire circumference, making it easier to achieve a repeatable, durable seal.
Where can MINI SEAL be used?
In walls, roofs, attics and floors, particularly at penetrations for electrical and control cables.
How is the collar version selected?
According to the cable diameter and number of cables. For example, the K1 version is intended for small cables with diameters of 4–8 mm.
Does MINI SEAL help create an airtight building?
Yes. Service penetrations are common sources of leaks in the airtightness layer, and a ready-made collar allows them to be sealed properly.
