Fixing Nail
GEO NAIL
Eurovent® GEO NAIL fixing nails are made of hardened steel and designed for installing foundation membranes with 8 mm high dimples. They are supplied with a special plastic washer that seals the fixing point. Together, the nail and washer form an effective fixing system for foundation membranes.
Advantages:
- made of hardened steel
- quick and easy to install
- corrosion-resistant
Application and Technical Data

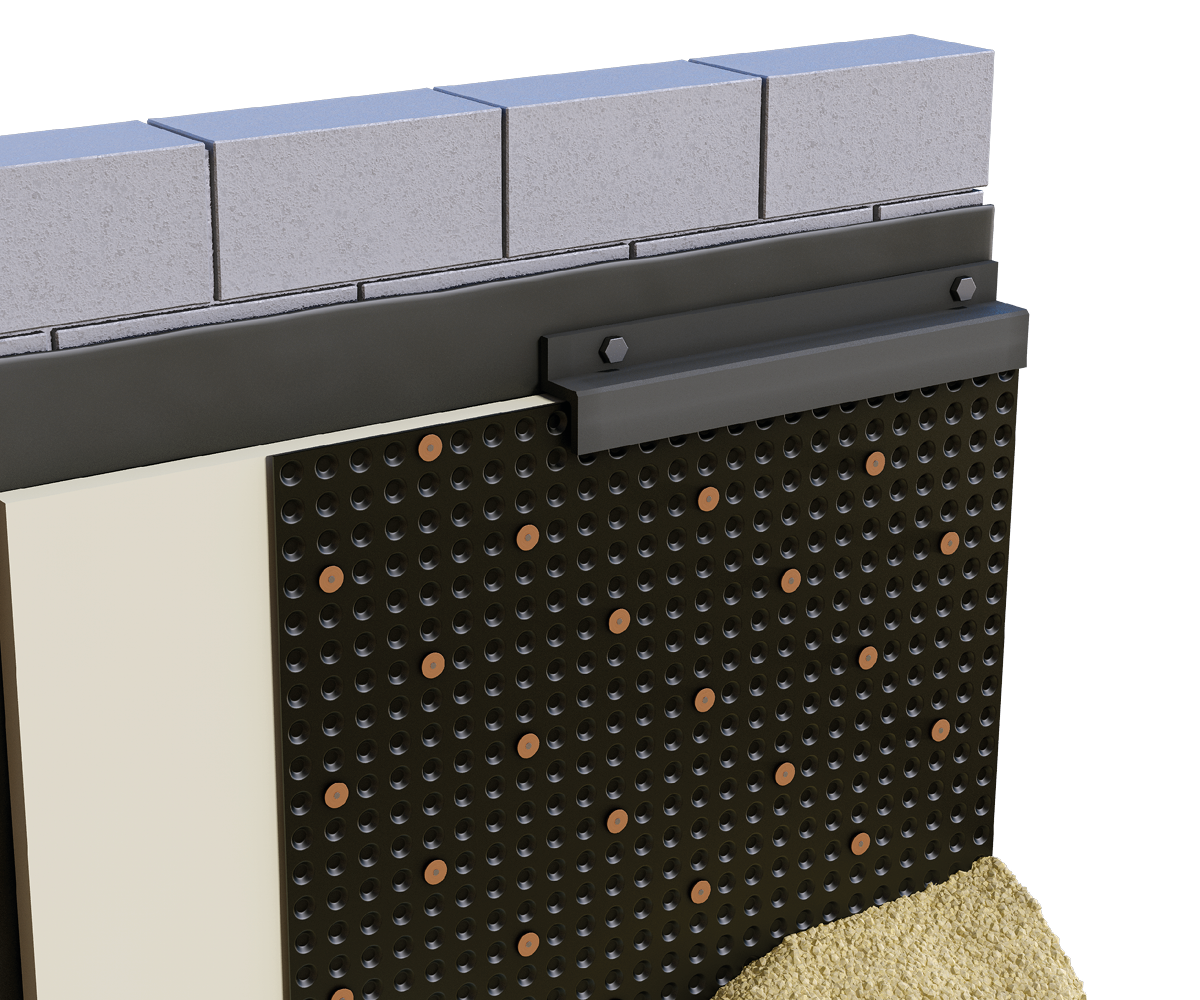

Eurovent® GEO NAIL fixing nails are used to secure foundation membranes to concrete, brick, hollow block and similar substrates. Thanks to the plastic washer, a correctly installed nail provides a tight connection between the foundation membrane and the substrate to which it is fixed.
Fotos
System products
For maximum performance, GEO NAIL should be used in combination with:
- Eurovent® foundation membranes (e.g. GEO 8, GEO 20), which require secure and durable fixing to protected surfaces,
- Eurovent® GEO LINE fixing profiles, which, together with GEO NAIL, provide a stable finish to the upper edge of the foundation membrane,
- Eurovent® sealing tapes (e.g. GEO BUTYL), which improve the tightness of connections and protect against moisture penetration,
- Eurovent® protective geotextiles, which protect the waterproofing layer against mechanical damage and increase the durability of the entire system.
Using complete Eurovent® system solutions provides secure and durable fixing of foundation waterproofing, stability of the entire waterproofing system and effective protection of the structure against ground moisture.
Documents
GOOD TO KNOW
What is GEO NAIL used for?
For mechanically fixing foundation membranes with 8 mm studs to suitable building substrates.
Why does the nail have a plastic washer?
It helps press the membrane into place and protect the fixing point.
Which substrates is GEO NAIL intended for?
For example concrete, brick and hollow-block surfaces, where the particular substrate allows proper fixing.
Is GEO NAIL also suitable for GEO 20?
The product is described as a system fixing for membranes with 8 mm studs. Other membranes require fixings suited to their construction.
Can the nail puncture a MAUER horizontal damp-proof course?
No. Dimpled-membrane fixings must not be used to puncture a continuous horizontal damp-proof course.
