Ventilation chimney
VENTOS X PLUS T
The advanced roof chimney Eurovent® VENTOS X - PLUS T with a ventilation cross-section of 170 mm and a connection diameter of 150 mm, made of high-quality synthetic material. The chimney construction supports ventilation by utilizing wind energy, ensuring proper chimney draught. It features an anti-condensation system that directs condensate outside the roof. The profiled cap prevents rainwater ingress. Angle adjustment from 5° to 45°. It includes a base for mounting on roofs covered with flat concrete tiles BRAAS TEGALIT/TEVIVA; IBF AAPHUS; NELSKAMP PLANUM; CREATON KAPSTADT.
Advantages:
- UV resistant
- For flat concrete tiles - type T
- Large ventilation area
- Quick and easy installation
- Complete set ready for installation
Application and Technical Data
The Eurovent® VENTOS X — PLUS T roof vent is used as a roof outlet for mechanical and natural ventilation ducts in residential and public utility buildings. The Eurovent® VENTOS X — PLUS T ventilation vent complies with PN-83/B-03430 together with amendment /Az3. It features adjustable inclination from 5° to 45°.

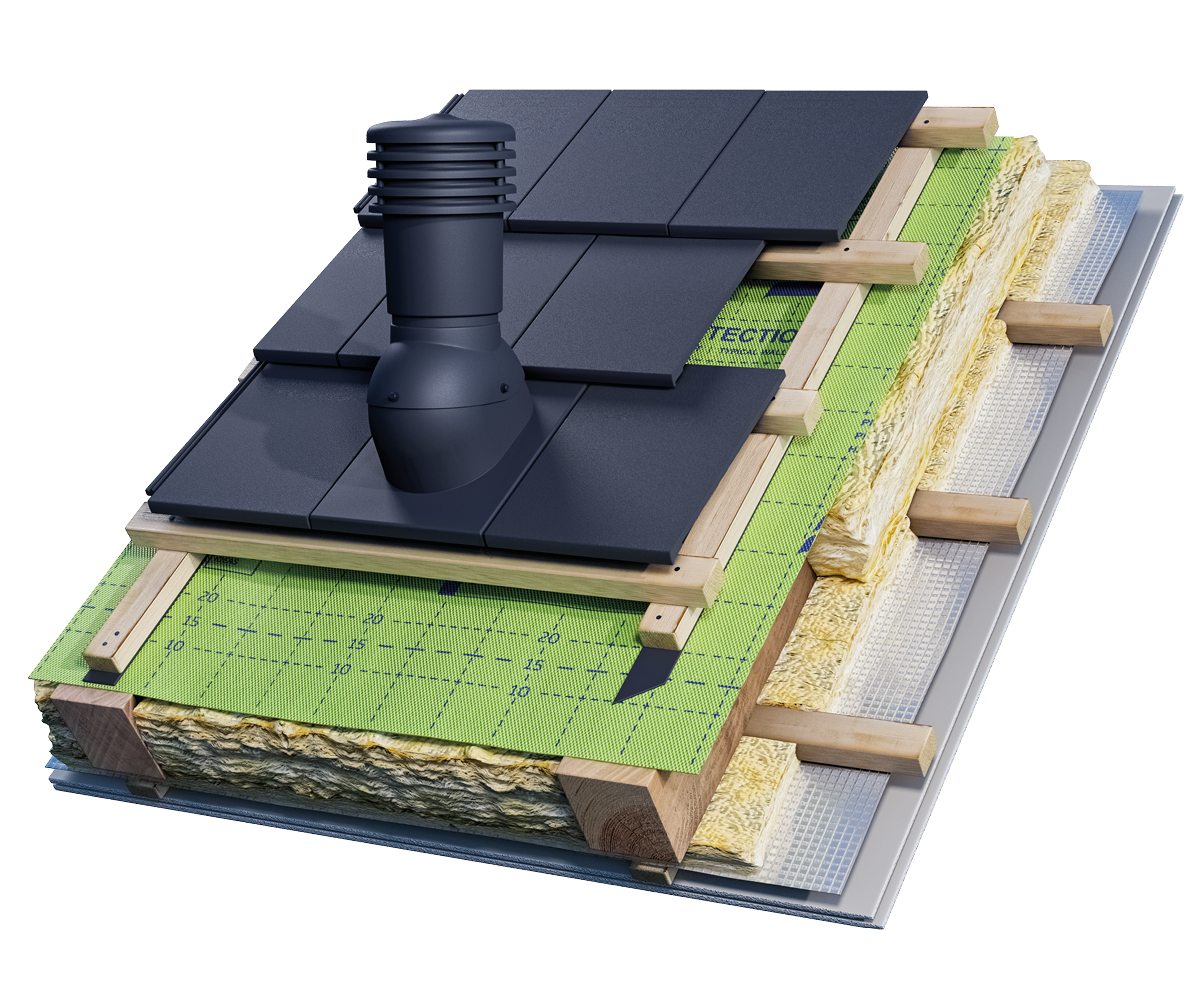

The base of the vent is designed for installation on roofs covered with flat concrete roof tiles:
- BRAAS TEGALIT / TEVIVA;
- IBF AAPHUS;
- NELSKAMP PLANUM;
- CREATON KAPSTADT.
Fotos
System products
To ensure maximum ventilation performance and tightness of roof connections, Eurovent® VENTOS X PLUS T should be used in combination with:
- Eurovent® system installation accessories, such as FLEX X, FLEXOS X and SEAL EPDM, which ensure a durable and tight connection of the ventilation chimney with the roof covering,
- Eurovent® highly vapour-permeable roof membranes, which support proper roof slope ventilation and protect the structure against moisture,
- Eurovent® sealing and adhesive tapes, protecting the installation areas against weather conditions and moisture penetration,
- Eurovent® roof access elements, facilitating safe service access to the ventilation chimney.
The use of complete system solutions by Eurovent® guarantees effective moisture removal, stable airflow and long-term tightness of the entire roof system.
Documents
GOOD TO KNOW
What do the PLUS T, R, C or S designations mean?
They identify a base type designed for specific groups of roof tiles. They do not imply compatibility with all tiles of a similar appearance.
How can I make sure the base fits my roof?
Check the tile manufacturer and exact model in the current Eurovent® configurator or compatibility list. This is safer than choosing by appearance alone.
Do different PLUS versions change how the roof vent works?
The vent’s basic function remains the same. The main differences concern the geometry of the roof penetration element matched to the specific covering.
Can VENTOS X PLUS be used with mechanical ventilation?
The VENTOS X series is intended to terminate mechanical and natural ventilation ducts, but the vent and diameter should be selected according to the installation design.
Can the base be modified if it does not fit perfectly?
This is not a recommended selection method. It is safer to use a version intended for the specific covering or an appropriate universal base specified by the manufacturer.
