Ventilation chimney
VENTOS X M11
Eurovent® VENTOS X M11 is an advanced roofing vent with the venting diameter of 170 mm and the venting entry of 150 mm, made of high-quality plastic. The construction of the roofing vent supports ventilation by using wind energy and ensures correct chimney draft. It has an anti-condensation system that removes condensation outside the roof. The profiled base prevents rainwater from flowing in. Tilt angle adjustment from 5 ° to 45 °. It has a base for mounting a fireplace on sheets with M11 stamping. Available in several of the most popular color versions according to RAL colors.
Advantages:
- UV resistant
- Compliant with the PN-83 / B-03430 standard
- To be used on steel tiles with M11 embossing
- Large ventilation surface
- Anticondensation system
- Complete set ready to install
Application and Technical Data

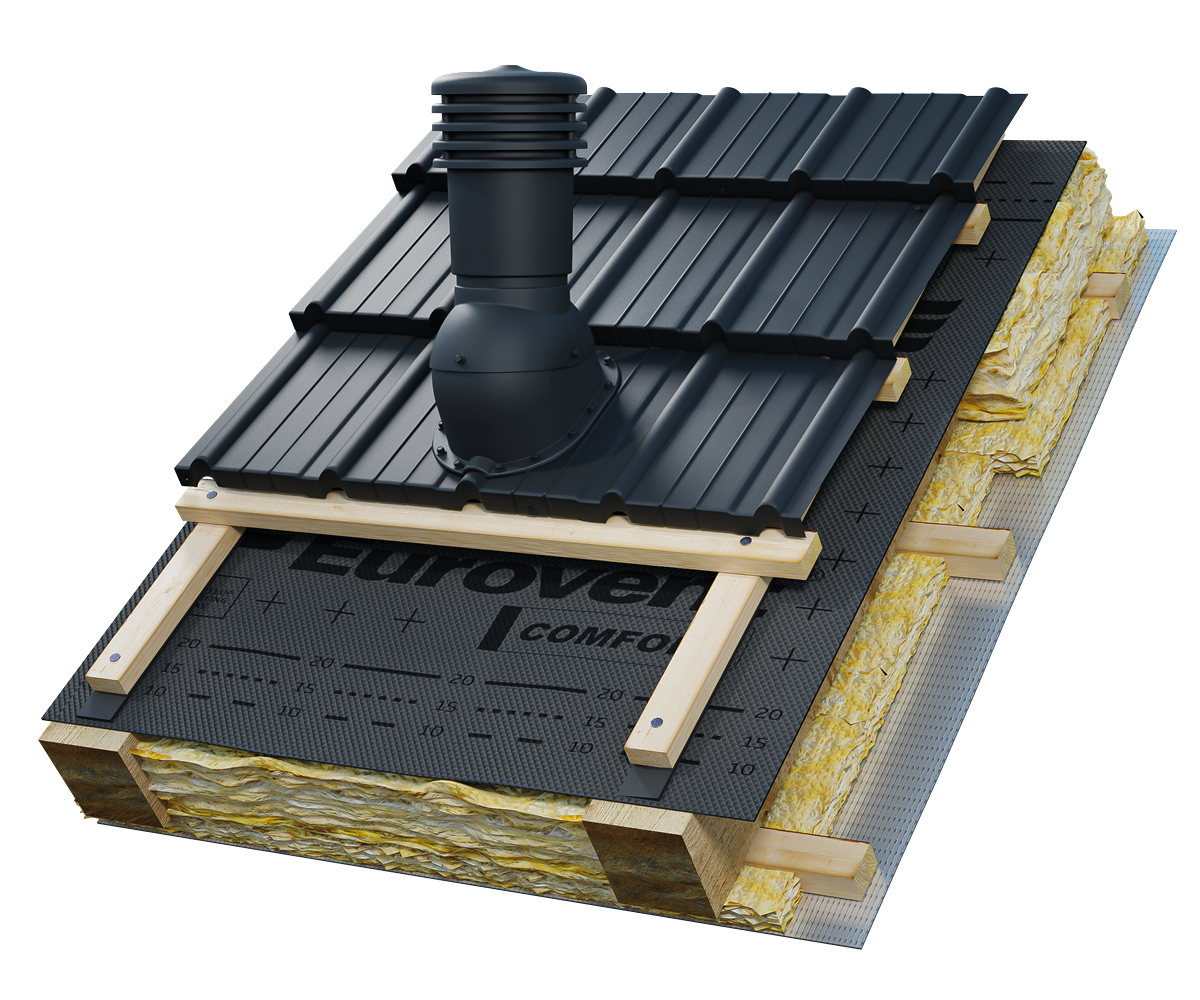

Eurovent® VENTOS X M11 roof vent is used as a roof exhaust outlet for mechanical and natural ventilation ducts in residential and public utility buildings. The Eurovent® VENTOS X M11 ventilation vent complies with PN-83/B-03430 with amendment /Az3. The vent base is adapted for installation on pitched roofs covered with M11 profile metal roof tiles. Adjustable roof pitch range from 5° to 45°.
Fotos
System products
To ensure maximum ventilation performance and tightness of roof connections, Eurovent® VENTOS X M11 should be used in combination with:
- Eurovent® system installation accessories, such as FLEX X, FLEXOS X and SEAL EPDM, ensuring a durable and tight connection of the ventilation chimney with the roof covering;
- Eurovent® highly vapour-permeable roof membranes, which support proper roof slope ventilation and protect the roof structure against moisture.
- Eurovent® sealing and adhesive tapes, protecting the installation areas against weather conditions and moisture penetration;
- Eurovent® roof access elements, facilitating safe service access to the ventilation chimney.
The use of complete system solutions by Eurovent® guarantees effective moisture removal, stable airflow and long-term tightness of the entire roof system.ļ
GOOD TO KNOW
What is Eurovent® VENTOS X designed for?
VENTOS X is a roof terminal for natural or mechanical ventilation ducts. The final connection should always follow the building ventilation design.
What should be considered with the 150 mm connection?
The 150 mm connection is a product parameter that should be taken into account when selecting ducts and reducers. Reducing the duct size should be checked against the required airflow and system design.
What does the anti-condensation system do?
The vent is designed to discharge condensate formed within the unit towards the outside. It does not replace correct duct installation or insulation where required.
Is selecting an N25 or R28 base enough?
Not necessarily. The exact roofing manufacturer and model should be verified using the current Eurovent® compatibility information.
Can the vent be adjusted to the roof pitch?
Yes, within the adjustment range specified for the particular product version in its current technical documentation.
