Flat air vent chimney
VENTOS X FLAT M11
Eurovent® VENTOS X FLAT M11 flat roof air vent made from plastic. The profiled cap prevents rainwater from flowing in. It has a base for installing the chimney on steel tiles covered with M11 embossing. Available in several of the most popular color versions according to RAL colors.
Advantages:
- For tiles with M11 embossing
- UV resistant
- Fast and easy application
- Complete set ready to install
Application and Technical Data

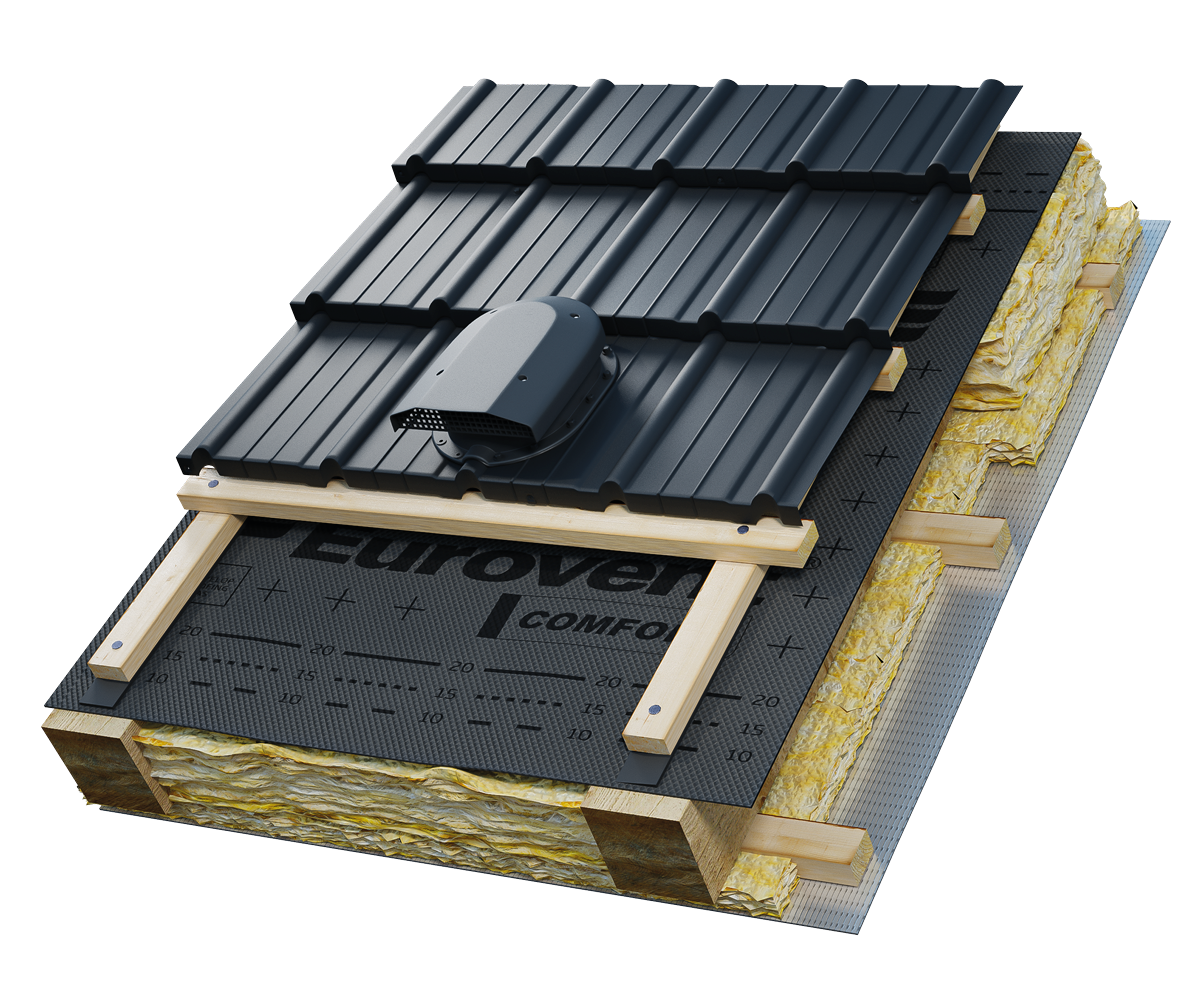

Eurovent® VENTOS X FLAT M11 is used as a ventilation component for pitched roofs with a slope from 5˚ to 45˚. It is applied for ventilation of moist air from beneath the roof covering, ensuring proper air circulation and adequate roof ventilation. The vent base is adapted for installation on pitched roofs covered with M11 profile metal roof tiles.
Documents
Fotos
System products
To ensure maximum ventilation performance and tightness of roof connections, Eurovent® VENTOS X FLAT M11 should be used in combination with:
- Eurovent® system installation accessories, such as FLEX X, FLEXOS X and SEAL EPDM, which ensure a durable and tight connection of the ventilation element with the roof covering;
- Eurovent® highly vapour-permeable roof membranes, which support proper roof slope ventilation, protecting the roof structure against excess moisture;
- Eurovent® sealing and adhesive tapes, protecting the installation area against weather conditions and ensuring tight connections;
- Eurovent® roof access elements, which facilitate safe access and servicing of the ventilation installation area.
The use of complete system solutions by Eurovent® guarantees effective moisture removal, stable airflow and long-term tightness of the entire roof system.
GOOD TO KNOW
Is VENTOS X FLAT a terminal for room ventilation systems?
No. It is a roof-space vent intended to support ventilation of the roof space, rather than a typical terminal for a ventilation duct from a room.
When is a roof-space vent used?
Where the roof ventilation design provides additional air inlet or outlet points. Their number and arrangement should follow the roof construction.
Can FLAT replace proper eaves and ridge ventilation?
It should not be treated as an automatic substitute. It supplements the roof ventilation system.
Which roof pitch is suitable for FLAT?
Check the range in the current technical data sheet for the specific version, as available product materials may differ on this parameter.
Is the FLAT base selected in the same way as for VENTOS X?
Yes. The version must match the specific roof covering or an appropriately selected universal solution.
