Sealing collar
SEAL EPDM
Eurovent® SEAL EPDM sealing collar made of highly flexible EPDM and metal reinforcement. It has a wide range of diameters from 75 to 160 mm. Used for sealing various types of installation passages (chimney, water, ventilation, sewage or electric) through the roof slope or façade made of profiled and flat sheets.
Advantages:
- wide range of diameters, fi 75 - 160 mm
- flexible epdm
- resistant to weather conditions and UV
Application and Technical Data

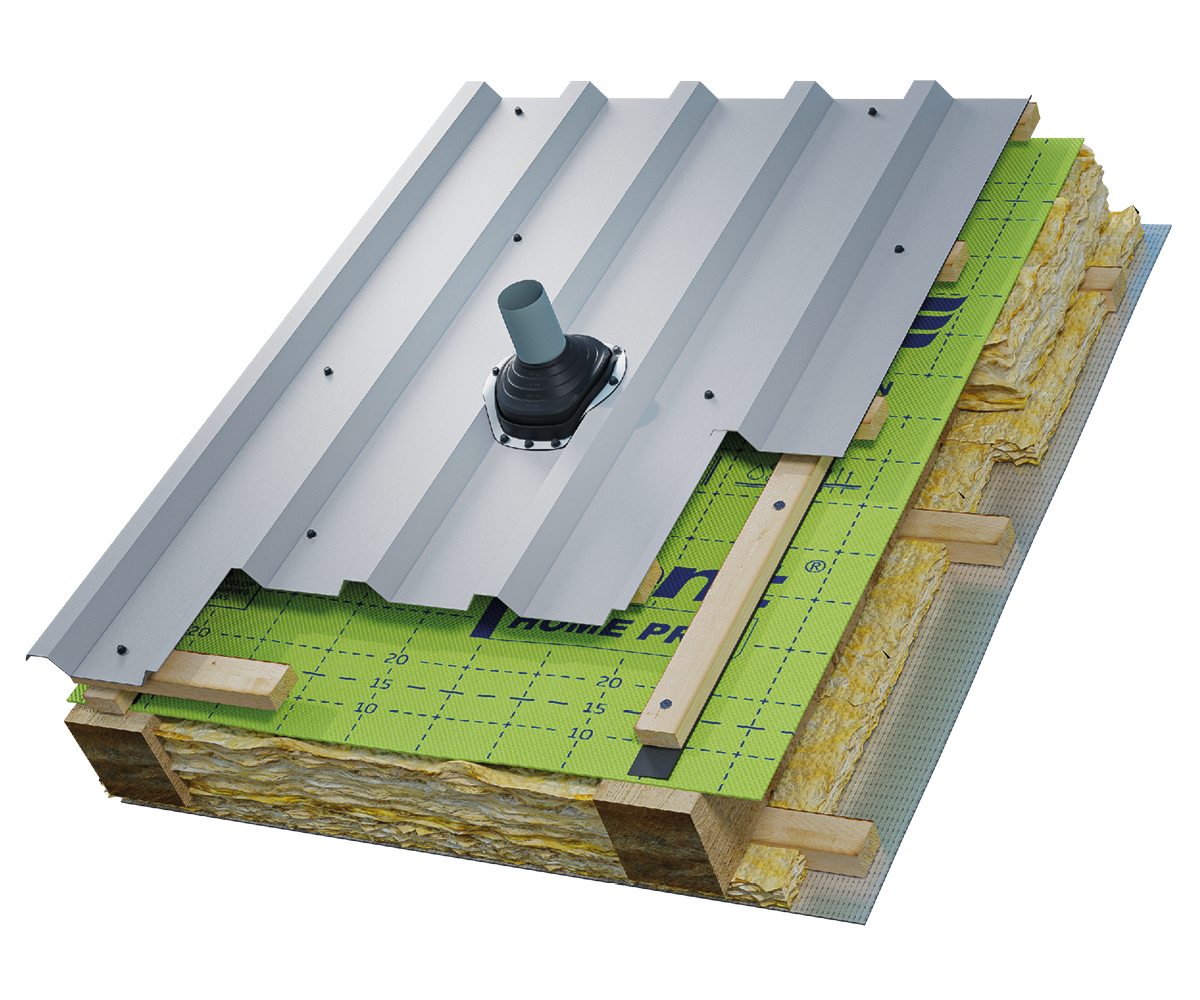

Used for sealing various types of service penetrations (chimney, water, ventilation, sewage or electrical) through the roof slope or façade made of profiled or flat metal sheets. The diameter of the opening should be 20% smaller than the sealed element. Installation of the flashing collars is carried out using screws and sealants.
Standing seam
Trapezoidal metal sheet
Flat roofing / shingles
Universal roof tiles
Roof tile
Fotos
System products
To ensure maximum tightness of roof penetrations and durable protection of the structure against water and moisture, the sealing flange Eurovent® SEAL EPDM should be used in combination with Eurovent® products:
- Roof membranes
- Sealing tapes
- Ventilation chimneys
- Ventilation ducts
The use of complete system solutions by Eurovent® guarantees tight roof connections, effective moisture removal and long-term protection against weather conditions.
Documents
GOOD TO KNOW
What is SEAL EPDM used for?
It is a flexible flashing collar designed to seal various service penetrations through flat and profiled metal roof coverings.
Can SEAL EPDM be used for any pipe diameter?
No. The appropriate collar version must be selected and the opening cut according to the instructions for the specific penetration diameter.
How large should the opening in the collar be?
It must be cut according to the current product instructions so that the material fits properly around the element being sealed. An oversized, loose-fitting opening must not be cut.
Does the collar attach to the roof using a self-adhesive layer?
No. Installation requires mechanical fastening and appropriate sealing in accordance with the product instructions.
Can SEAL EPDM be used on high-temperature pipes?
First check the permissible temperature of the specific material version and the installation requirements. Not every chimney or flue pipe can be sealed with the same type of collar.
