Roof membrane
MAGNUM
The Eurovent® MAGNUM roof membrane is an anti-condensation, vapour-permeable membrane. It is designed to be used for insulated and ventilated sloping roofs, also with full sarking and low pitch. It is suitable under concrete, clay tiles, metal tiles, aluminium sheets, natural slate. Available as an option with 2 self-adhesive tapes - SYSTEM SK2.
Advantages:
- Tear resistance
- Water-tightness
- Prevents condensation
- Suitable for full sarking
Application and Technical Data

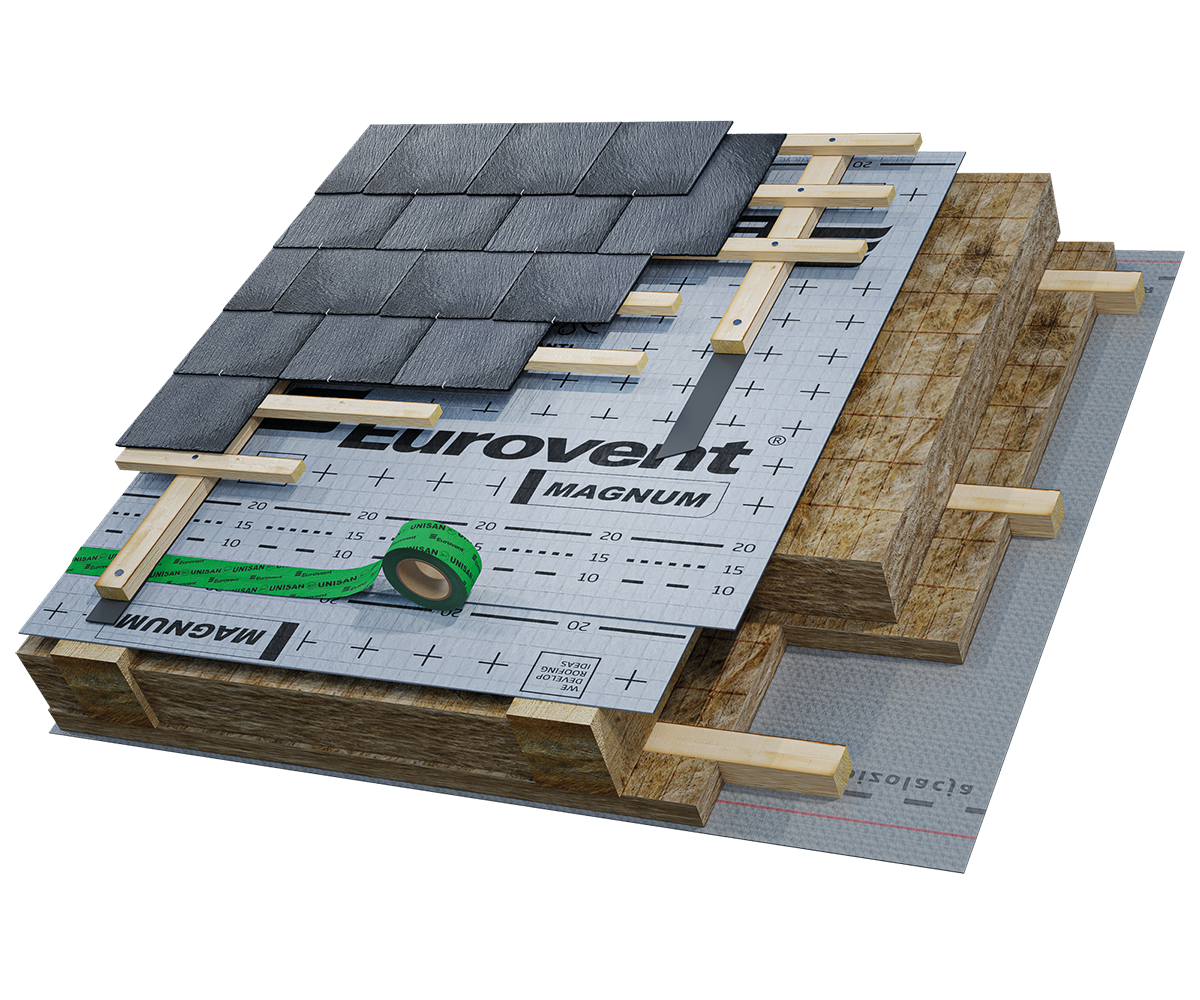

The Eurovent® MAGNUM roof membrane is used as an underlay for pitched, insulated and ventilated roofs, including roofs with full boarding. Thanks to its structure and high durability, it is one of the few products on the market also recommended for slate roofing. The product requires a ventilation gap between the membrane and the thermal insulation (mineral wool, glass wool, etc.), which means the membrane must not be in direct contact with the insulation. Installation of the final roof covering on the membrane must always be carried out using battens and counter-battens. It is suitable for use under almost all types of roof coverings, in particular slate, ceramic tiles, concrete tiles, metal roofing tiles and aluminium sheets.
Concrete roof tile
Metal roof tile
Standing seam metal roofing
Trapezoidal metal sheet
Roofing slate
Fotos
System products
In order to achieve maximum durability and full functionality, Eurovent® MAGNUM should be used in combination with:
- Eurovent® sealing and adhesive tapes
- Compatible ventilation accessories (ridge tapes, ventilation chimneys)
- Eurovent® system vapour control membranes and wind barrier membranes
The use of complete Eurovent® system solutions increases the durability and energy efficiency of the entire roof.
GOOD TO KNOW
What does the anti-condensation function of MAGNUM mean?
MAGNUM is designed to help manage moisture caused by condensation in a correctly ventilated roof build-up. It supports safe moisture removal when installed as part of the proper roof system.
Can MAGNUM be in direct contact with thermal insulation?
No. In accordance with the installation instructions, a clear ventilation gap of at least 5 cm must be maintained between MAGNUM and the thermal insulation.
Is MAGNUM suitable for full sarking?
Yes. It can be used on pitched roofs with continuous timber decking.
Can MAGNUM be used under slate?
Yes. The product is also intended for use beneath slate roofing.
What other coverings can it be used under?
Clay and concrete tiles, metal roof tiles and selected metal roofing systems, subject to the roof design.
