External sealing corner
CORNER PRO OUT
Single-layer external corner Eurovent® CORNER PRO OUT, made of SEBS material with a high coefficient of UV radiation resistance and water resistance. It is used for waterproof insulation of difficult connections between the window frame and the substrate outside the corners.
Advantages
- Suitable for frame and modular construction
- High mechanical stability and tear resistance
- Characterized by high UV radiation resistance and weather conditions
- Recommended in "Passivhaus" passive construction
-
Suitable for sealing elements of facade structures
Application and Technical Data

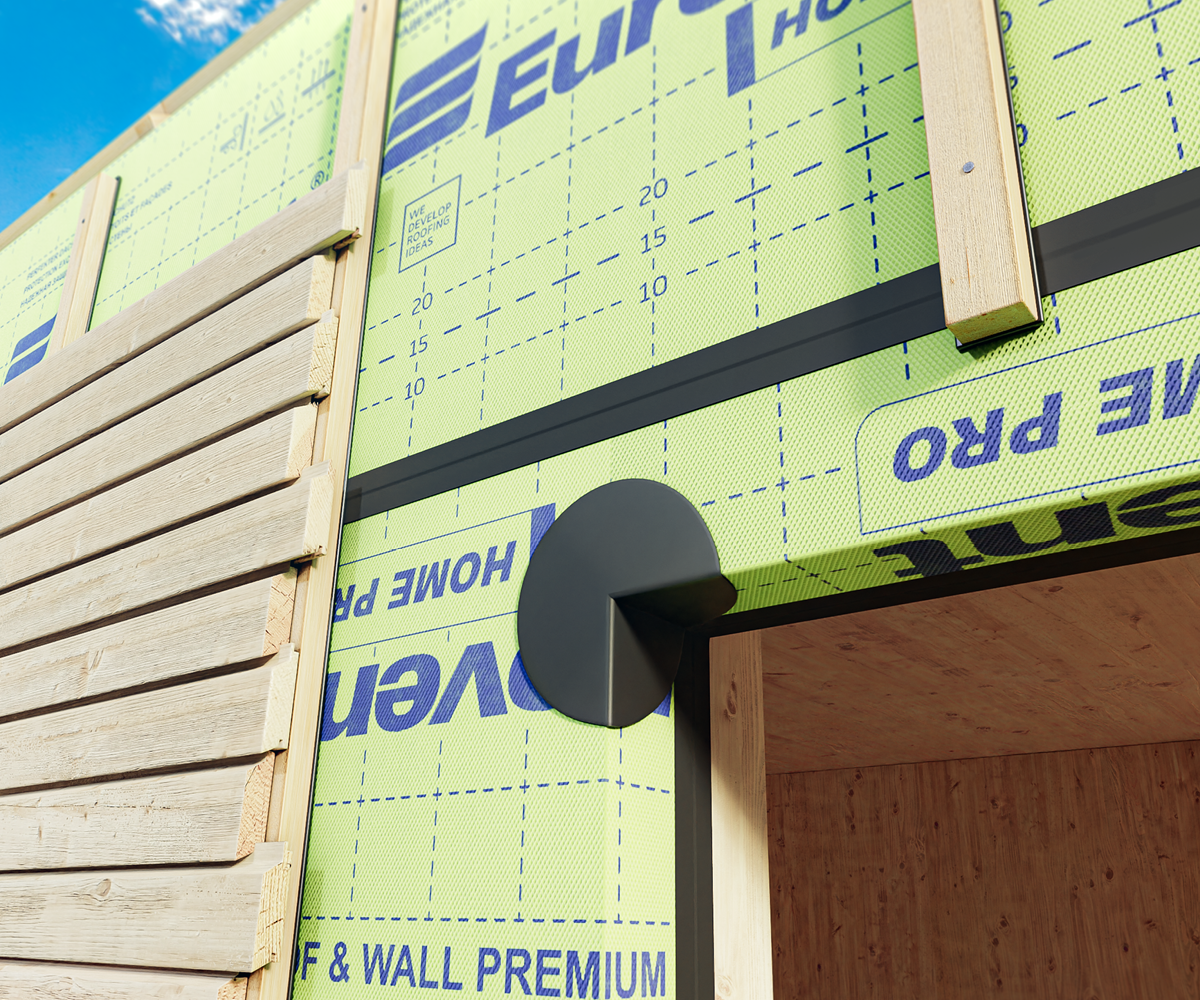

The external corner Eurovent® CORNER PRO OUT is used for waterproof insulation of difficult connections between the window frame and the substrate on the outside corners. It can be applied in facade constructions, windows, for insulating connections of terrace-balcony thresholds, as well as in roofs. Depending on the installation requirements, the corner can be glued or welded.
Installation:
- By bonding in order to mechanically connect it to the window frame and the wall.
- Installation can be carried out using butyl adhesive directly on aluminium, steel or wooden structures.
- The product should be applied under conditions allowing normal construction works and must not be installed at temperatures below −15 °C.
- The product should be applied to a prepared surface free from dust, dirt and grease.
Window
Documents
Fotos
System products
To ensure maximum performance of Eurovent® CORNER PRO OUT, it is recommended to use it as part of a complete system together with:
- Eurovent® vapour control membranes (vapour barriers), where CORNER PRO OUT provides airtight and durable finishing of external corners while maintaining full continuity of the vapour control layer,
- Eurovent® roof membranes (roof underlays), supporting the correct performance of sealing systems at roof slope junctions and structural connections,
- Eurovent® sealing and adhesive tapes, complementing the function of CORNER PRO OUT and enhancing airtightness in critical detailing areas,
- Eurovent® installation accessories, stabilising roofing layers and ensuring proper and secure installation of corner elements.
The use of complete Eurovent® system solutions guarantees airtight corners, effective protection against moisture ingress and long-term reliability of the roof structure.
GOOD TO KNOW
Which corners is CORNER PRO OUT designed for?
External corners, where the seal must pass around a projecting edge of the detail.
Where can it be used?
Around windows, façades, terrace and balcony thresholds, and other connections requiring a ready-made external corner.
How does OUT differ from IN?
The material and function are similar, but the elements have different geometries. IN is intended for internal corners and OUT for external corners.
Is the material UV-resistant?
Yes. The SEBS used to manufacture the corner element is highly resistant to weather and UV radiation.
Can it be used in modular construction?
Yes. The product is intended for applications including framed and modular construction and demanding façade details.
